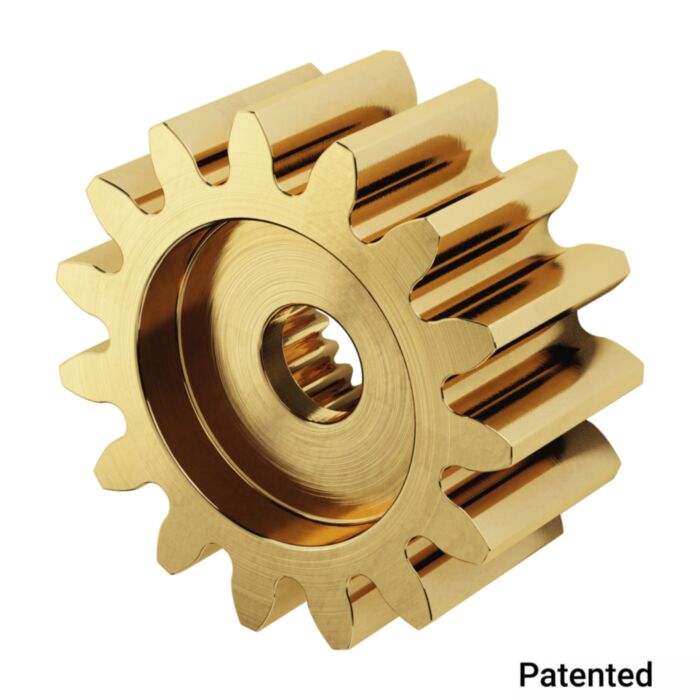

2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 15 Tooth)

Rating:

100% of 100

1 Review

SKU: GB-2305-0025-0015 Brand: goBilda

This 15 tooth servo gear is most commonly used to drive the 105.....

$16.30 AUD, inc GST

$14.82 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 02

Quantity Discounts:

10-25 $14.08 (exc GST)
25+ $13.34 (exc GST)

This 15 tooth servo gear is most commonly used to drive the 105 tooth hub gear, spaced 48mm away, in order to create a 7:1 ratio. This gear reduction will increase the torque at the hub gear to 7x what the servo produces. The sacrifice will be the reduction in range of motion and speed by the ratio.

Downloads

STEP File

Specs

Weight	4.1g
Material	Brass
Tooth Count	15
Gear Pitch	MOD 0.8
Pressure Angle	20 Degree
IP	Patented

This product is listed in:

goBILDA>MOTION>Gears>Servo Gears>25 Tooth Servo Spline
goBILDA>MOTION>Servos>Servo Attachments>Gears
goBILDA>ELECTRONICS>Servos>Servo Attachments>Gears
