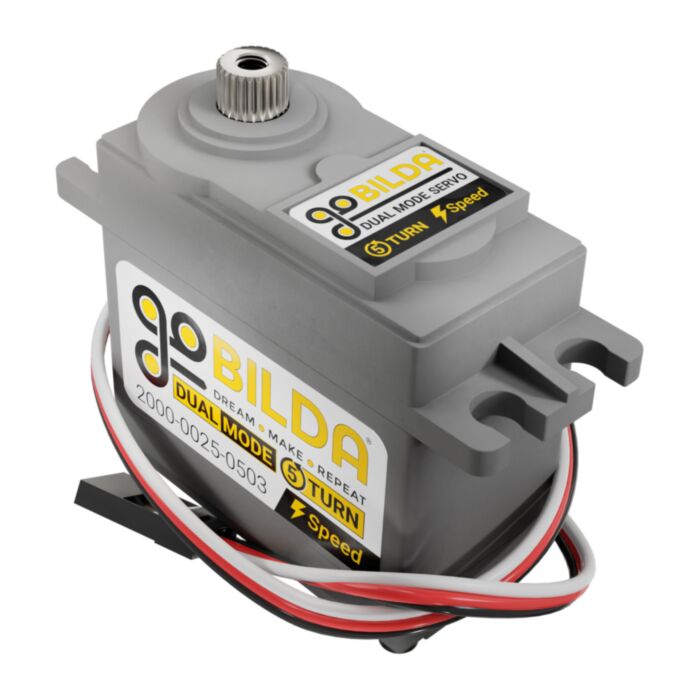

2000 Series 5-Turn, Dual Mode Servo (25-3, Speed)

SKU: GB-2000-0025-0503 Brand: goBilda

Meet the Dual Mode 5-Turn ‘SPEED’ Servo. Like the other 2000 Series goBILDA® servos, the 2000-0025-0503 boasts two different.....

$83.55 AUD, inc GST

$75.95 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 01

Quantity Discounts:

6-12 $72.92 (exc GST)
12+ $70.64 (exc GST)

Meet the Dual Mode 5-Turn ‘SPEED’ Servo. Like the other 2000 Series goBILDA® servos, the 2000-0025-0503 boasts two different modes:

Default Mode

In Default Mode the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo.

Continuous Rotation Mode

Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

How Far Will This Servo Rotate When In Feedback Mode?

The answer to this question is partially dependent on what you are using to control the servo that drives the gearbox. As you can see below, a Servo Travel Tuner allows you to achieve maximum rotation, but it is just as useful to dial down the rotation to suit your needs.

With an Average Radio System:
2.25 Turns (810°)
Your average transmitter and receiver will output a relatively narrow PWM signal range.

Radio System + Travel Tuner:
5 Turns (1800°)
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.

Wide Signal Controllers:
5 Turns (1800°)
Controllers such as Arduinos, and Raspberry Pi servo hats can usually send a wide signal.

Downloads

STEP File

Specs

Weight	60g (2.12oz)
Gear Ratio	135:1
Output Shaft Style	H25T (25 Tooth) Spline
Voltage Range	4.8V - 7.4V
No-Load Speed (4.8V)	0.11 sec/60° (90RPM)
No-Load Speed (6.0V)	0.09 sec/60° (115RPM)
No-Load Speed (7.4V)	0.07 sec/60° (145RPM)
Stall Torque (4.8V)	110 oz-in (7.9 kg.cm)
Stall Torque (6.0V)	130 oz-in (9.3 kg.cm)
Stall Torque (7.4V)	150 oz-in (10.8 kg.cm)
No-Load Current (4.8V)	190mA
No-Load Current (6.0V)	200mA
No-Load Current (7.4V)	230mA
Stall Current (4.8V)	2,000mA
Stall Current (6.0V)	2,500mA
Stall Current (7.4V)	3,000mA
Max PWM Range	500-2500µsec
Max PWM Range (Continuous)	900-2100µsec
Travel per µsec	0.90°/µsec
Max Rotation (Default Mode)	5 Turns (1800°)
Pulse Amplitude	3-5V
Deadband Width	4µsec
Motor Type	Brushed DC
Feedback Style	5KO Potentiometer
Output Shaft Support	Dual Ball Bearing
Gear Material	Steel
Wire Length	11.81" (300mm)
Wire Gauge	22AWG
Connector Type	3-Pos TJC8 Servo Connector [MH-FC]
Servo Size	Standard
Direction with Increasing PWM Signal	Clockwise
