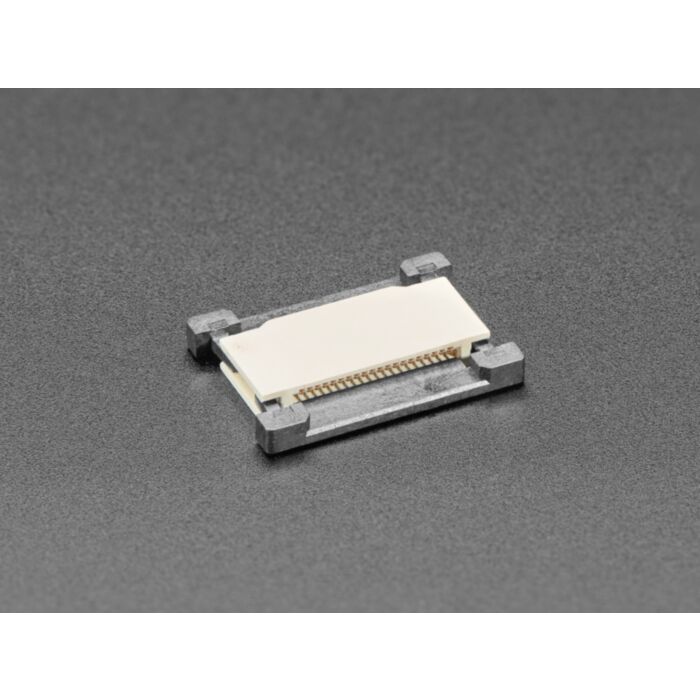

20-pin 0.5mm FFC / FPC Extender

SKU: ADA5203 Brand: Adafruit
This 20-pin FFC / FPC Extender is very simple. It lets you connect two 20-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit)...
$1.95 AUD, inc GST
$1.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 20 and May 26

Quantity Discounts:

  • 10+ $1.70 (exc GST)
  • 25+ $1.65 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This 20-pin FFC / FPC Extender is very simple. It lets you connect two 20-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length.

Note that pin 1 of one cable is connected to pin 20 of the other so you need to use a cable that has contacts on the same side (type A-A cable)

Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.

We also carry an assortment of extender options, like this 60-pin 0.5mm version50-pin 0.5mm version, 30-pin 0.5mm, and a 24-pin 0.5mm version.

Technical Details

Product Dimensions: 16.6mm x 9.6mm x 2.2mm / 0.7" x 0.4" x 0.1"
