Adafruit FPC Stick - 20 Pin 0.5mm/1.0mm Pitch Adapter

Rating:

80% of 100

SKU: ADA1325 Brand: Adafruit

Connect to 0.5mm, 1.0mm and even some 2.0mm pitch connectors that you may run across with an FPC stick. Adafruit designed this for use in house, to quickly connect to...

$3.95 AUD, inc GST

$3.59 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 06 and Jan 10

Quantity Discounts:

10-25 $3.48 (exc GST)
25+ $3.41 (exc GST)

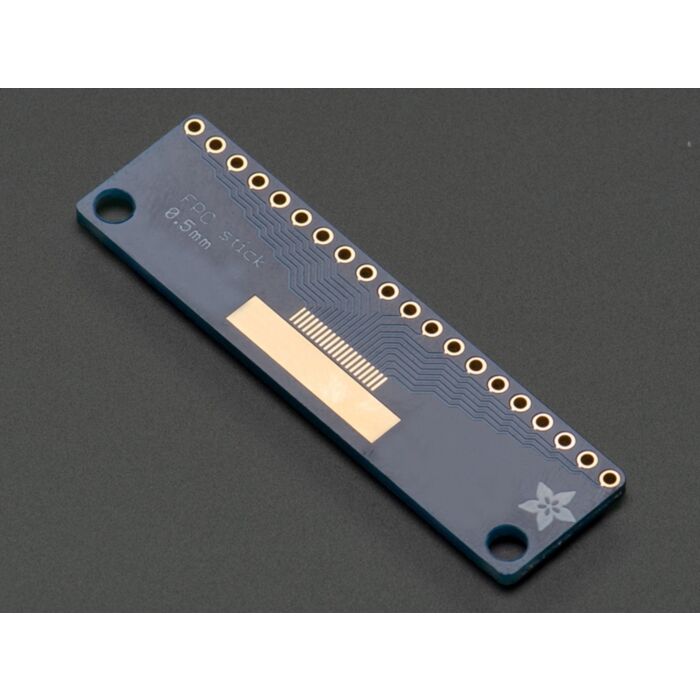

Connect to 0.5mm, 1.0mm and even some 2.0mm pitch connectors that you may run across with an FPC stick. Adafruit designed this for use in house, to quickly connect to FPCs Adafruit need to test. But They also thought it might be useful for Adafruit's customers. On either side is a 20 pin 0.5 or 1.0mm pitch connector with long pads and one very long 'mechanical' pad. Each pad is broken out to a 20-pin long 0.1" spaced header. It can accommodate most ZIF and snap connectors and will make prototyping much easier on you!

Each order comes with a single double-sided PCB stick (one side 0.5mm the other 1.0mm), no header or other connectors included.

Adafruit FPC Stick - 20 Pin 0.5mm/1.0mm Pitch Adapter (2:15)

Technical Details

Dimensions: 13.98mm / 0.55" x 50.85mm / 2"
Weight: 2.10g
1.0mm pitch side dimensions
