2-Channel Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov
Quantity Discounts:
- 10-25 $31.46 (exc GST)
- 25+ $30.48 (exc GST)
2-Channel Isolated CAN Bus Expansion HAT for Raspberry Pi, MCP2515 + SN65HVD230 Dual Chips Solution, Multi Onboard Protection Circuits
What can it do?
enable isolated and stable CAN bus capability for your Raspberry Pi
Designed for the Raspberry Pi series
Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards
Features
- Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
- Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
- Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
- Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120O terminal resistor, configured by jumper
- Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
2-Channel CAN capability
MCP2515 CAN controller + SN65HVD230 CAN transceiver
Electrical isolation circuitry safe & stable
SM24CANB TVS diode, ESD protection, transient peak voltage protection
Flexible and handy jumpers
easily select 3.3V / 5V operating voltage, or enable/disable 120O terminal resistor, via onboard jumpers

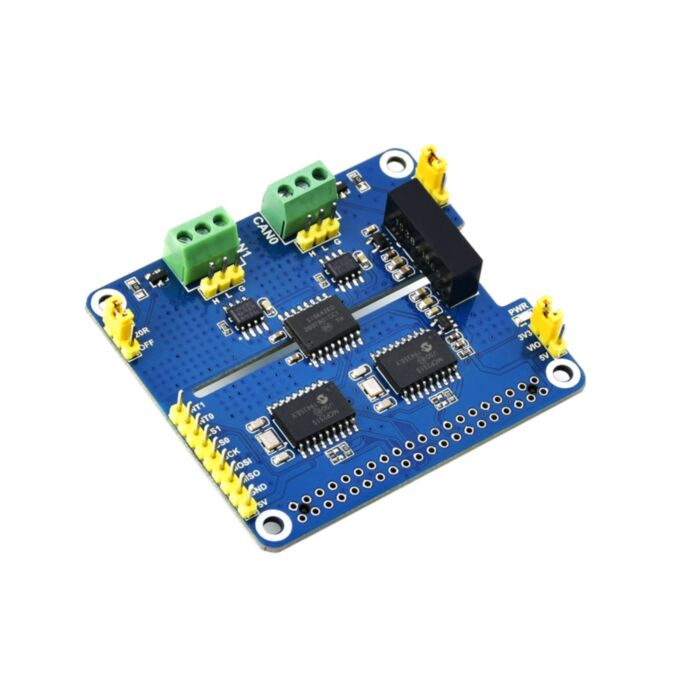

What's On Board
What's On Board
- MCP2515 CAN controller
- SN65HVD230 transceiver
- SI8642ED digital isolator
- RT9193-33 power chip
- B0505LS-1W power supply isolation module
- SM24CANB TVS diode
- Standard Raspberry Pi 40PIN GPIO header
- CAN bus screw terminal
- MCU control pins
- 120O terminal resistor switch
- 3.3V/5V logic level switch
- Power indicator
Pinout
Specifications
| CAN controller | MCP2515 | Power supply voltage | 5V |
|---|---|---|---|
| CAN transceiver | SN65HVD230 | Logic level voltage | 3.3V/5V |
| Control bus | SPI | Dimensions | 65 × 56.5(mm) |
Dimensions
