16 MHz Crystal + 20pF capacitors

Rating:

100% of 100

SKU: ADA2215 Brand: Adafruit

Keep your microcontroller tickin' with a a fancy timing crystal. This 16.000 MHz model comes in a HC49/US 'short style' standard package and is breadboard friendly...

$1.80 AUD, inc GST

$1.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $1.57 (exc GST)
25+ $1.52 (exc GST)

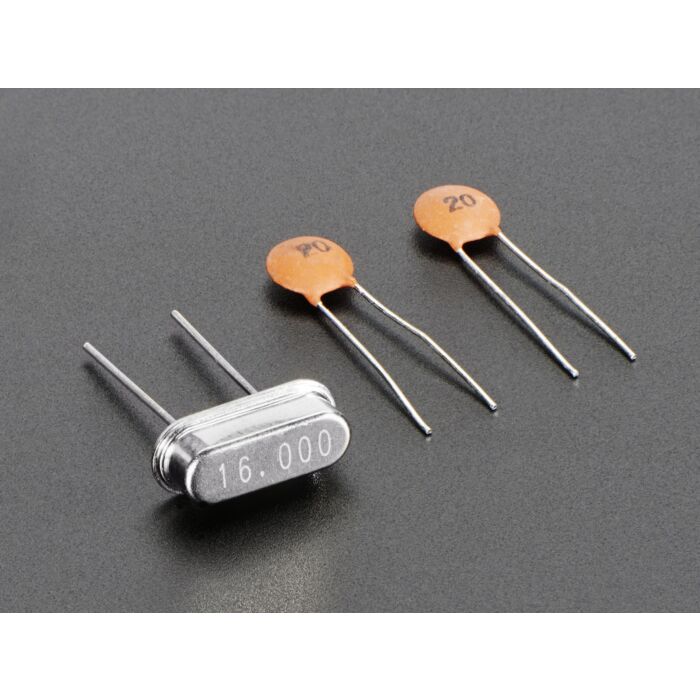

Keep your microcontroller tickin' with a a fancy timing crystal. This 16.000 MHz model comes in a HC49/US 'short style' standard package and is breadboard friendly and easy to use with any microcontroller or device that requires an external crystal. Adafruit even include two 20pF capacitors!

The crystal has 30PPM tolerance, 50PPM stability so it's good even for high precision needs (USB timing, long-term time-keeping, RF/PLL/VCO driving).

To use, connect the two pins to XTAL-in and XTAL-out on your circuit (the package is symmetric so use whichever pin) and one capacitor each from a crystal pin to ground. Check your microcontroller datasheet in case you also need a 1 Megaohm resistor or any other components.

Technical Details

Pin Length (capacitors): 13mm / 0.5"
Diameter (capacitors): 5mm / 0.2"
Crystal Datasheet
Crystal Dimensions
