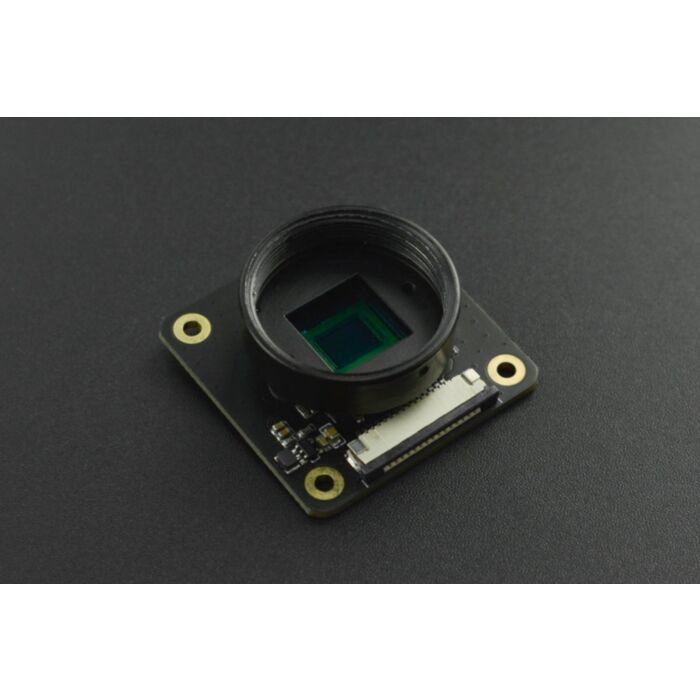

12.3MP Camera Module for NVIDIA Jetson Nano & Raspberry Pi CM3

SKU: SEN0494 Brand: DFRobot
This high-quality 12.3MP camera module adopts Sony's IMX477R chip and requires a C or CS mount lens to work. It is compatible with NVIDIA Jetson Nano...
$96.70 AUD, inc GST
$87.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 12 and Dec 16

Quantity Discounts:

  • 6-12 $85.27 (exc GST)
  • 12+ $83.51 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This high-quality 12.3MP camera module adopts Sony's IMX477R chip and requires a C or CS-mount lens to work. It is compatible with NVIDIA Jetson Nano series and Raspberry Pi CM3 compute module. The camera module offers higher resolution (12.3MP) and higher sensitivity (nearly 50% larger area per pixel for improved low-light performance) than IMX219 cameras, which can be used in industrial and consumer applications.

12.3MP Camera Module for NVIDIA Jetson Nano

Features

  • Sony IMX477R sensor with 12.3MP high resolution
  • Larger area per pixel for improved low-light performance
  • Back-illuminated sensor architecture for improved sensitivity
  • Support for different C- and CS-mount lenses
  • Specification
  • Sensor Model: Sony IMX477R
  • CMOS Diagonal Length: 7.9mm
  • Resolution: 12.3 million pixels (4056×3040)
  • Single Pixel Size: 1.5µm(H)×1.55µm(V)
  • Output Format: RAW12/10/8, COMP8
  • Back Focal Length: adjustable
  • Lens Standard: C-mount/CS-mount (supporting C/CS connecting ring)
  • Infrared Filter: integrated
  • Documents
  • Product wiki
  • Parts List
  • IMX477 Camera Module x1
  • C/CS Connection Ring x1
  • FPC Cable x1
  • Dust Cap x1
  • Product Comments
