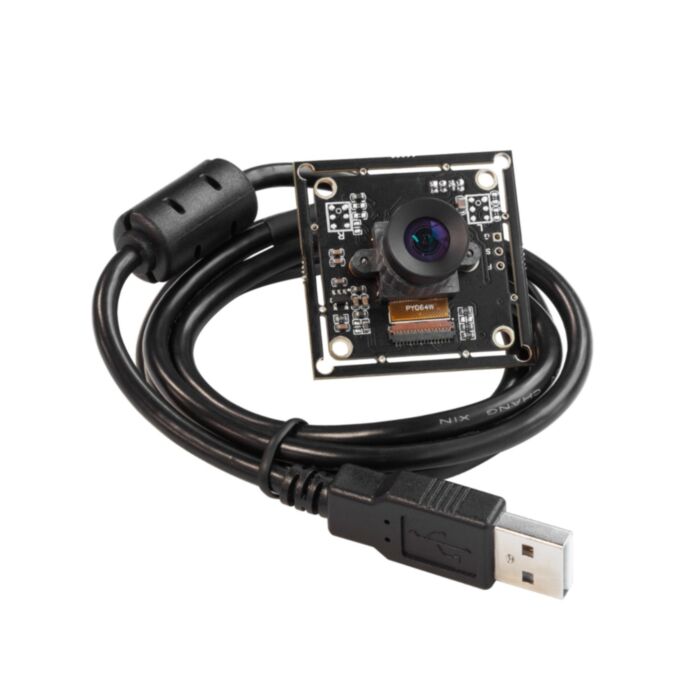

Arducam 2MP Global Shutter USB Camera Board (OV2311)

SKU: AC-B0322

Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

$169.95 AUD, inc GST

$154.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

5-10 $148.32 (exc GST)
10+ $143.68 (exc GST)

Arducam B0322 is a new member of Arducam’s USB camera family. It’s a 2MP, based on the 1/2.9″ monochrome global shutter OV2311 image sensor, UVC compliant, low distortion USB 2.0 camera.

Based on 2MP monochrome (black&white) global shutter sensor OV2311, assembled with a 75° low distortion M12 lens without IR pass filter, sensitive to IR.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Due to the sensor’s high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Applications

Iris and face recognition
Astrophotography
Gesture and eye tracking
Depth and motion detection
Home video surveillance system

Specs

Camera

Sensor: 1/2.9” OV2311
Resolution: 2MP 1600 x 1200
Data Format: MJPG/YUY2
Frame Rate: MJPG switchable, up to 50fps@1600 x 1200/1280 x 960/ 720P/800 x 600/640 x 480/320 x 240/160 x 120; YUY2 5fps@1600 x 1200/720P/800 x 600.
USB Connector: B4B-ZR(LF)(SN)

Lens

Field of View (FOV)：75 degrees (H)
Lens Mount: M12
IR Sensitivity: No IR filter, sensitive to IR

Functionality and Compatibility

Adjustable parameter: Exposure/ White Balance
System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver

Power

Power Supply: USB-powered 5V
Working Current: MAX 200mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm)
– Cable Length: 3.3ft (1M)

NOTE:

This camera module supports the trigger via an external signal, and also support the output the strobe signal, please refer to Arducam Doc page to get the instruction.

Resources

Docs

This product is listed in:

Sensors>Camera
