Arducam Pivariety Global Shutter Camera for Raspberry Pi

SKU: AC-B0353 Brand: Arducam

$194.95 AUD, inc GST

$177.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5-10 $171.91 (exc GST)
10+ $168.36 (exc GST)

The Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Pivariety camera modules make users get better performance and a wider variety of camera and lens options. In other words, Pivariety breakthrough the limitations of the closed-source official supported camera driver and camera modules (V1/V2/HQ).

Pivariety made it possible to be well-tuned ISP with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

This Pivariety AR0234 Color Global Shutter Camera is migrated Raspberry Pi Cameras, which eliminate rolling shutter artifacts to shoot high-speed moving objects in color sharp images.

Applications

Augmented and virtual reality
Drones
3D imaging
Machine vision
Industrial bar code scanning
Industrial automation, etc.

Features

Based on AR0234 Color Global Shutter Sensor: 2.3MP AR0234 global shutter color sensor, maximum frame rate up to 60fps.
Wide Angle: 90 deg (H) wide view angle
Gstreamer is supported with this camera
Support libcamera apps for the ISP processing image and official V4L2 apps
Compatible with all libcamera-based apps maintained by the RPi foundation

Specifications

Image Sensor	Color Global Shutter AR0234
Optical Size	1/2.6"
Resolution	2.3MP 1920 × 1200
Pixel Size	3 µm × 3 µm
Max Frame Rate	1920 × 1200@30fps; 1920 × 1080@30fps; 1280 × 720@60fps
Effective Focal Length	3.6mm
F.NO	3.0
Lens Mount	M12 Mount
Focus Type	Manual Focus
Field of View(FOV)	120°(H), 90°(H), 75°(V)
IR Sensitivity	Integral IR-cut filter, visible light only
Output Format	RAW10
ISP Output Format	Image: JPG, YUV420, RAW, DNG/Video: MJPEG, H.264
Output Interface	2-lane MIPI serial output
Camera Board Size	38mm × 38mm

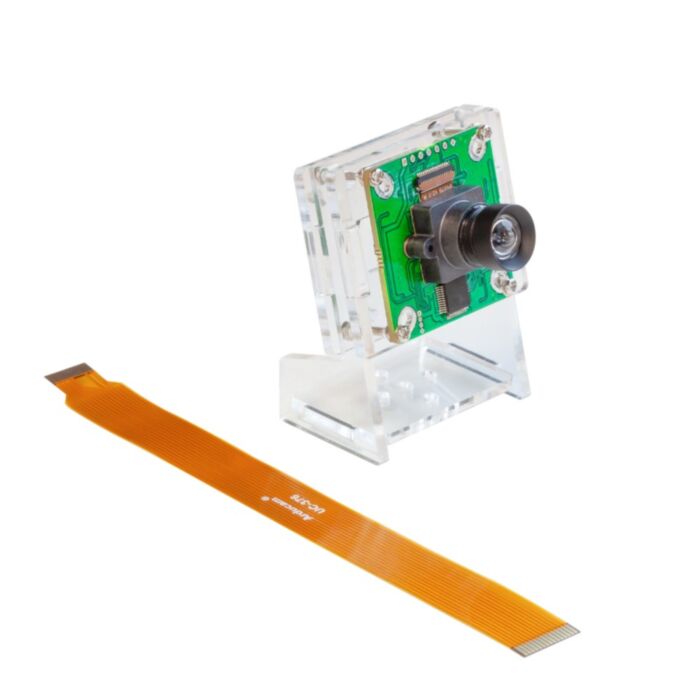

Package Including

1 × Arducam 2.3MP AR0234 ISP Camera Module
1 × 150mm 15pin to 22pin FPC cable
1 × acrylic case kit with assembly accessories

Notes

Raspberry Pi board not included
Arducam Pivariety cacmera can only work with libcamera, does NOT support Raspistill or Raspivid
V412 tools are supported, but only RAW format images can be obtained, without ISP support
