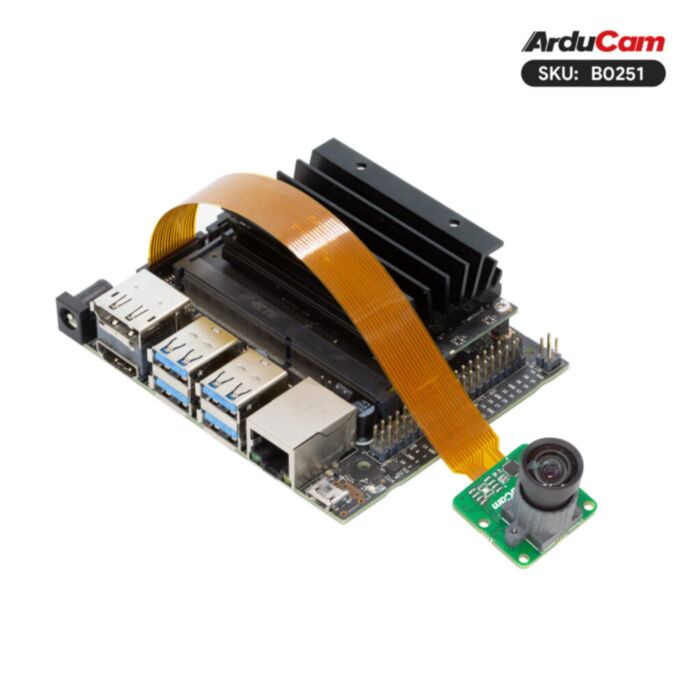

ArduCam Mini Camera for Jetson Nano

SKU: AC-B0251 Brand: Core Electronics

This is a Arducam Mini High Quality Camera with M12 mount lens. Rated at 12.3MP 1/2.3″ 477P HQ for use with the Jetson Nano/Xavier NX/AGX Orin/Orin Nano/Orin NX

$109.95 AUD, inc GST

$99.95 AUD, exc GST

Quantity Discounts:

5-10 $95.95 (exc GST)
10+ $92.95 (exc GST)

Out of Stock

To make High-Quality camera module work on applications with size and weight limits, Arducam just released this small-size camera module for Jetson Nano/Xavier NX. It is fully compatible with Raspberry Pi V2 module size, a 24mm x 25mm camera board, and a low-distortion M12 mount lens. Customers can use this camera module on Jetson Nano/Xavier NX natively with hardware ISP features.

Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera to the NVIDIA Jetson Orin kernel.

This camera relies on to work with one kernel version per camera driver.

Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
Up or downgrading your OS leads to a kernel bump, and you'll need to re-install a matching driver.
Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don't see it released in time, kindly remind us.
NOTE ON OFFICIAL PLATFORM - This camera is released for official Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards.

Camera Sensor Optical Format: 1/2.3" (diagonal 7.857mm)
Resolution: 4056(H) x 3040(V) 12.3MP
Pixel Size: 1.55um x 1.55um
IR Sensitivity: Visible light
Interface: 2-lane MIPI CSI-2
Default Lens Mount: M12 Mount
Frame Rate: NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin
Nano/AGX Orin:
- L4t 32.x: 4032 × 3040@30fps, 3840 × 2160@30fps, 1920 × 1080@60fps
- L4t 35.x: 4032 × 3040@20fps, 3840 × 2160@30fps, 1920 × 1080@60fps

Lens Format: 1/2.3 inch
Focal Length: 3.9mm
Aperture (F): F2.8
Field of View (FOV): 75° (H)
Mount: M12 Mount
Back Focal Length: 4.49mm
MOD: 0.1m Dimension: F14 × 18.67mm

Weight: 5g

Part Number: LN053

Alternative Lens Options

SKU
Part No	M17350H08	M2025ZM02	M231250H03	M2306ZM13	M23390H08	M23356H09	M23270H10	M23325H12	M23272M14	M25156H18
Optical Format	1/2.3'	1/2.3'	1/2.3"	1/2.3"	1/2.3"	1/2.3"	1/2.3”	1/2.3"	1/2.3"	1/2.3"
EFL(mm)	35.00	25.00	12.50	6.00	3.90	3.56	2.70	3.25	2.27	1.56
BFL(mm)	5.50	5.20	2.11	7.56	4.49	5.92	4.97	4.10	3.01	4.30
Construction	5G	6G	6G+IR	6G+IR	6G+IR	4G3P+IR	5G2P+IR	7G+IR	8G+IR	6G+IR
F/NO	3.0	2.0	2.35	2.0	2.8	2.5	2.8	2.2	2.5	2.0
HFOV on 1/2.3" Cam	8°	20°	30°	50°	75°	90°	100°	120°	140°	180°
IR filter	No IR filter	No IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter
MOD	0.35m	0.20m	0.30m	0.30m	0.30m	0.20m	0.30m	0.30m	0.20m	0.20m
Size(mm)	22x 29.3	17 x 21	14 x 22.72	16x 16.41	14x 18.67	14x 16.3	16x 18.43	17x 19	17.2x 22	20x 17.3

1 pcs 12.3MP color camera module
1 pcs 3.9mm focal length M12 mount camera lens
1 pcs 150mm/12inch 15pin to 22pin camera cable

Arducam Documentation - Quick Start Guide for High Quality Camera on NVIDIA Jetson

Troubleshooting Camera with Nano & NX (Hardware & Driver):
