10 segment LED gauge bar (Seeed Studio)

SKU: SS304080004

$2.41 AUD, inc GST
$2.19 AUD, exc GST
10 segment LED gauge bar (Seeed Studio)
2.41 AUD

SKU: SS304080004

$2.41 AUD, inc GST
$2.19 AUD, exc GST
In stock, with a short lead time. 73 units dispatch in 6 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Jul with Express Post within Australia.

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

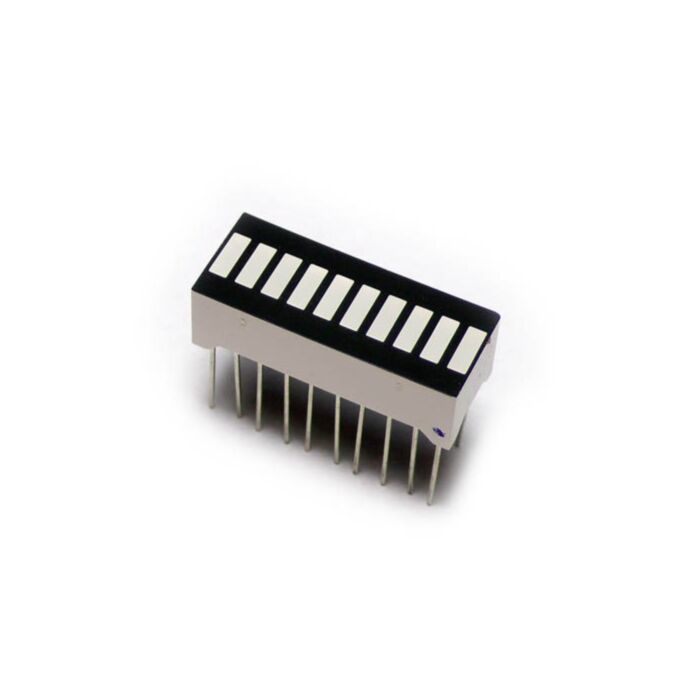

This is a segment LED bar without control chip. It has 10 segment LEDs, including of 8 green, 1 yellow and 1 red. It is compatible with bread board and can work with Arduino by adding some current limiting resistors. Since it has 10 pin, it may be complex to control. If you would like a modular segment LED bar, see the Grove - LED Bar.


LEDs color



Specification

SYMBOL

PARAMETER

RED

UNIT

PAD

Power Dissipation Per Segment

100

mw

VR

Reverse Voltage Per Segment

5

V

IAF

Continuous Forward Current Per Segment

20

mA

IPF

Peak Forward Current Per Segment(Duty-0.1,1KHz)

90

mA

---

Derating Linear From 25°C Per Segment

0.5

mA/°C

TOPr

Operating Temperature Range

-30°C  to 80°C

Tstg

Storage Temperature Range

-30°C  to  85°C

Solder Temperature1/16 inch Below Seating Plane 3 Seconds at 250°C





Dimension
