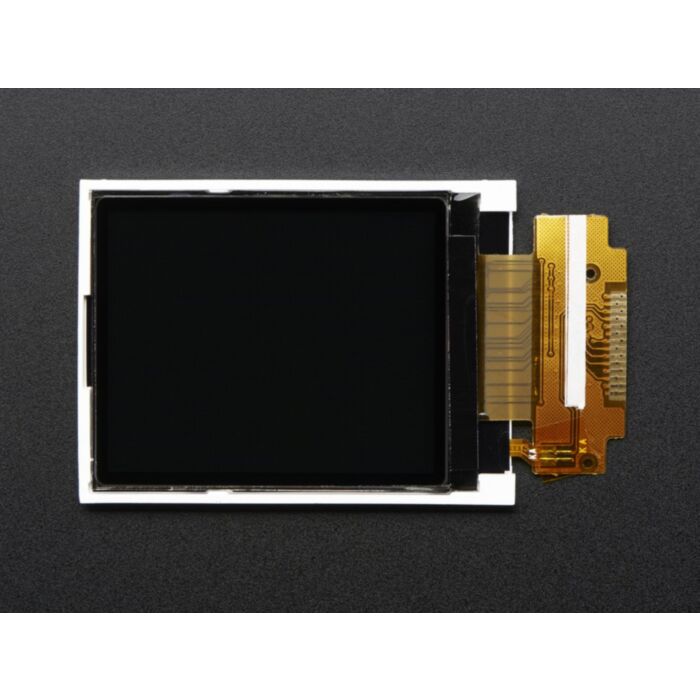

1.8 SPI TFT display, 160x128 18-bit color - ST7735R driver

SKU: ADA618 Brand: Adafruit

We just love this little 1.8" TFT display, with true TFT color (up to 18-bits per pixel!), fine 160x128 resolution, two white LED backlight that runs on 3.3V and...

$20.75 AUD, inc GST

$18.86 AUD, exc GST

Quantity Discounts:

10+ $18.11 (exc GST)
25+ $17.55 (exc GST)

Out of Stock

Adafruit just love this little 1.8" TFT display, with true TFT color (up to 18-bits per pixel!), fine 160x128 resolution, two white LED backlight that runs on 3.3V and a very easy SPI interface that requires only 4 or 5 digital pins to send pixels to the display.

Please note! This is just the raw display, not attached to a PCB or for use with a breadboard. If you want to use this out of the box with no surface mount soldering, check out Adafruit's fully assembled 1.8" TFT breakout board with microSD card holder. This display is for experts who are comfortable soldering a surface mount display using fine pitch soldering techniques! This display also is for 3.3V use only, so be sure to use a level shifter if you're going to use it with 5.0V microcontrollers.

Want to use this TFT display on your next project? Adafruit have it already in Adafruit's Eagle library, under the name JDT-1800!

Adafruit have a full C/C++ library for the ST7735R chip that drives this display in github

Technical Details

You may also be interested in the datasheet for the display , and display driver chip

Product Dimensions: 46.6mm x 34.5mm x 2.4mm / 1.8" x 1.4" x 0.1"
