0.71inch Double Eye Round LCD Display Module

SKU: WS-29381 Brand: Waveshare

0.71inch Double Eye Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K Colors...

Special Price $17.63 AUD, inc GST

Regular Price $27.50 AUD, inc GST

$16.03 AUD, exc GST

Special pricing ends 02 June 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Mar 13 and Mar 17

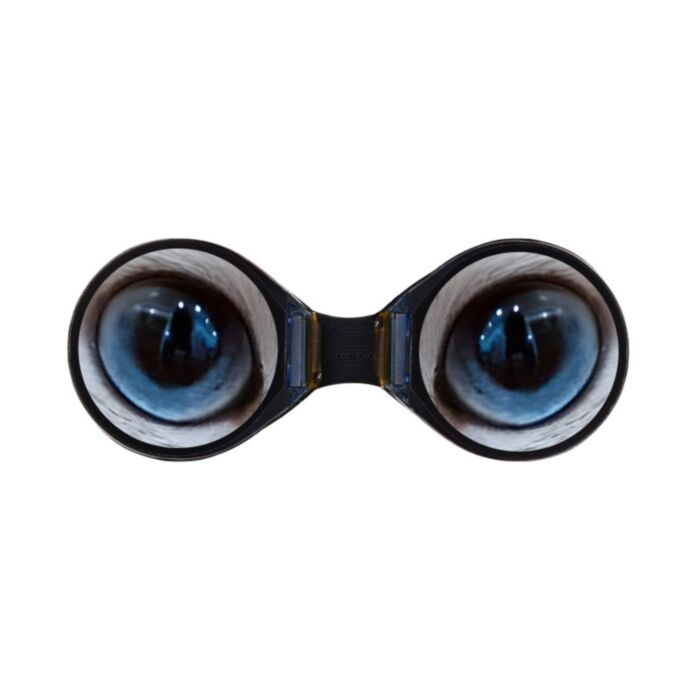

0.71inch Double Eye Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K Colors 0.71inch Double Eye LCD Module

IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus

Features

The double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle
160×160 resolution, 65K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino

Specifications

Operating voltage	3.3V / 5V	Resolution	160 × 160 pixels
Communication Interface	SPI	Display size	18 × 18 (mm)
Display Panel	IPS	Pixel pitch	37.5 × 112.5 (µm)
Driver	GC9D01	Dimensions	20.00×51.00 (mm)

Resources

Wiki for Double-Eye LCC

This product is listed in:

Displays & Screens>Round Displays
