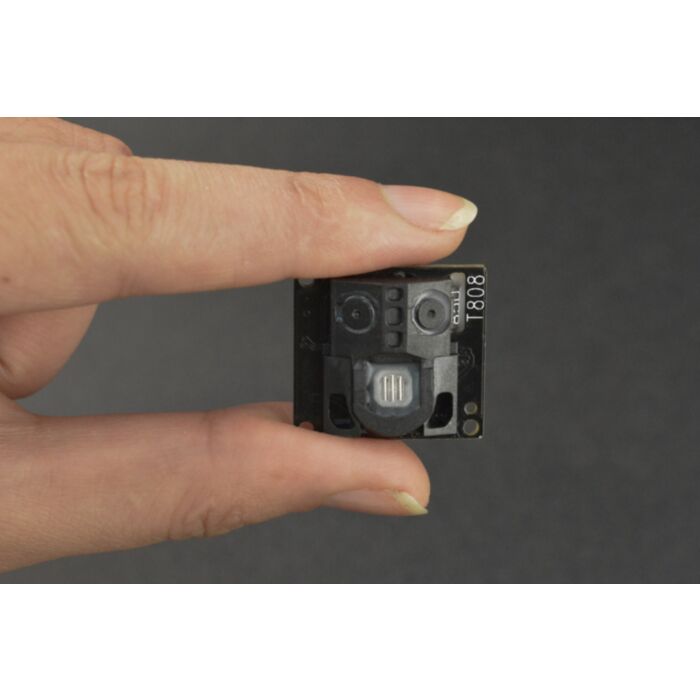

YDLIDAR GS2 - Linear Array Solid State LiDAR Sensor(25-300mm)

SKU: DFR1030 Brand: DFRobot
This YDLIDAR GS2 linear array solid state lidar distance sensor can detect objects with a diameter of 3mm in FOV 100° and a range of 25 to 300 mm. Range...
$72.23 AUD, inc GST
$65.66 AUD, exc GST

Available with a lead time
Expect dispatch between May 31 and Jun 06

Quantity Discounts:

  • 6+ $64.68 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a Linear array solid LiDAR. Based on the principle of Triangulation, it isequipped with related optics, electricity, and algorithm design, to achieve 100 degrees ofhigh-precision laser distance measurement, and output point cloud data of the scanningenvironment. It can be used for robot obstacle avoidance, path planning, etc.

Ultra-wide FOV to assist robot vacuum cleaner through blind spots

Field of View up to 100 degrees, Wide range of detection

Obstacle avoidance along the wall with performance improvement

The GS2 can obtain more measurement information in the vertical direction,helping smart devices such as robot vacuum cleaner and service robots with accurate real-time monitoring of the edge, efficiently complete multiple difficult tasks such asaccurate.

Compact and light, flexible installation

The size of the whole device is only 25.6 (L) × 23.6 (H) × 10.8 (W) mm, whichcan be flexibly and easily integrated into various small smart devices. It can fully meetthe refined detection needs of intelligent equipment such as robot vacuum cleaner.

Multiple authoritative certifications,high safety performance

Application scenario

Dimension

Features

  • High precision, stable performance
  • Ranging angle up to 0.6°
  • Detectable smallest object diameter 3mm
  • Wide detection range, FOV up to 100°
  • Detection range of 25mm-300mm
  • Compliant with FDA Class I Security Standard
  • Service Life 10000h
  • Multiple authoritative certifications: CE, FCC, FDA, ROHS, Reach
  • Applications

  • Robot Works Alongside the Wall
  • Positioning Measurement
  • Anti-falling
  • Grab& Positioning of Robot
  • Detection-by Height
  • Specification

  • Supply voltage: 3.2-3.4V
  • Start-up current: 240mA
  • Working current: 100mA
  • Ranging distance: 25-300mm
  • Ranging frequency: 28Hz
  • Laser wavelength: 850nm
  • Field of view: 100°
  • Angle resolution: 0.6°
  • Relative error: Distance=100mm (=3mm)

                     100

                     200=Distance<300mm>

  • Angle error:±3°
  • Sunlight resistant: 25Klux
  • Operating temperature: -10~40°C
  • Storage temperature: -30~70°C
  • Life-time: 10000h
  • Size: 25.6*23.6*10.8mm
  • Documents

  • Development Manual
  • YDLidar-SDK-master
  • Data Sheet
  • Lidar User Manual
  • DFR1030 GS2tool.part1
  • DFR1030 GS2tool.part2
  • Note: Please Unzip the DFR1030 GS2 tool in the same folder

    Parts List

  • Linear Array Solid LiDAR x1
  • Adapter Board x1
  • 4Pin Connector Wire x1
  • USB to Type-C Cable x1
  • This product is listed in:

    Sensors>Distance>Infrared
