xTool RA2 Pro Accessory Kit
Engrave tapered cups, bevelled bottles and the inside of rings, with faster, repeatable focusing for every batch run.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
An upgrade set that levels tapered and bevelled objects, pinpoints the rotation axis, and locks in a repeatable position for batch work on the xTool RA2 Pro Rotary Attachment.
Tapered tumblers and bevelled wine bottles sit at an angle in the chuck. The engraving surface isn't parallel to the laser, so focus drifts across the design. The L-shaped module tilts the rotary's U-axis anywhere within a 26° range, which brings the surface level with the beam. It also opens up jobs the standard RA2 Pro can't reach, like engraving the inside of a ring.
Setup gets quicker too. The battery-powered laser positioning module projects a guide so you can find the central axis and set focus without guesswork. The limit piece then gives each part in a batch the same fixed reference, so you only focus once. It works with a range of tabletops.
The kit is designed for all versions of the xTool RA2 Pro (sold separately). xTool supports 26° inner-ring engraving on the D1, D1 Pro, F1, F1 Ultra and S1.
Features
- Keeps tapered and bevelled surfaces in focus from edge to edge, thanks to the L-shaped module's finely adjustable 26° U-axis tilt
- Engraves wedding bands and signet rings from the inside by angling the chuck so the beam reaches the inner surface
- Cuts setup time with a laser positioning module that marks the rotation axis for accurate centring and focus
- Makes batch runs repeatable with a limit piece that holds a fixed reference position, so you don't re-focus between parts
- Bolts straight onto the RA2 Pro using the included screws, positioning studs and hex tools, with no modifications needed
- Genuine xTool accessory, engineered to match the RA2 Pro's geometry and chuck mode
Specifications
| Property | Specification |
|---|---|
| Compatible rotary | xTool RA2 Pro (all versions) |
| Tilt adjustment (L-shaped module) | 0–26°, infinitely adjustable U-axis (chuck/jaw mode) |
| Inner-ring engraving supported on | xTool D1, D1 Pro, F1, F1 Ultra, S1 |
| Laser positioning module power | AAA battery (included) |
Resources

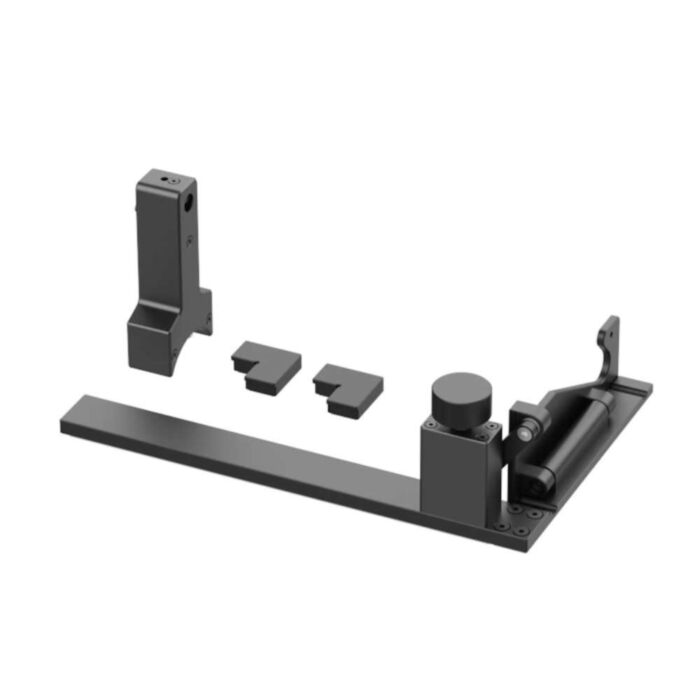

What's Included
- 1 x L-shaped module
- 1 x Laser positioning module
- 2 x Limit piece
- 4 x AAA battery
- 2 x Positioning stud
- 3 x M3×30 screw
- 2 x M4×43 screw
- 1 x 2 mm hex key
- 1 x 2.5 mm hex screwdriver
- 1 x 2 mm hex screwdriver
- 1 x Nano tape
