xTool MetalFab SaveGas Cutting Nozzle Set

Thick stainless, aluminium and brass, cut cleanly at just 0.6 MPa. This is the telescopic contact-cutting nozzle you fit to an xTool MetalFab CNC Cutter when the job calls for real material thickness rather than fine detail.

Cutting 4 mm metal with an ordinary nozzle means driving your air system to 1.2 MPa and keeping it there. The SaveGas nozzle does the same work at half that pressure, which takes the strain off your compressor and dryer and keeps thicker material cutting within reach of a modest shop air setup.

It is a contact method, so it trades a little surface finish for that efficiency: expect to polish out light scratches, and keep shapes at 2.5 mm or larger. For scratch-free detail work, the ordinary nozzle remains the better tool. Every MetalFab CNC Cutter ships with one of these sets already fitted, so this is the spare you keep on the shelf for when the first one wears out.

Features

• Cuts 4 mm stainless steel, 4 mm aluminium and 3 mm brass, thicknesses an ordinary nozzle can only reach by doubling air pressure
• Operates at 0.6 MPa (87 PSI) rather than 1.2 MPa, so a smaller compressor and dryer can keep pace with thicker work
• Telescopic contact design maintains a consistent standoff through the cut, delivering burr-free edges on straightforward profiles
• Ten replacement ceramic rings included, covering the consumable wear part so the set keeps working well past the first ring
• Genuine xTool part, dimensionally matched to the MetalFab cutting head with no shimming or adaptors needed

Specifications

Resources

• xTool MetalFab Laser Welder and CNC Cutter Gas Guide - shielding gas types, purity, pressure and flow rates
• Cutting Metals with the MetalFab CNC Cutter in xTool Studio - setup and workflow walkthrough

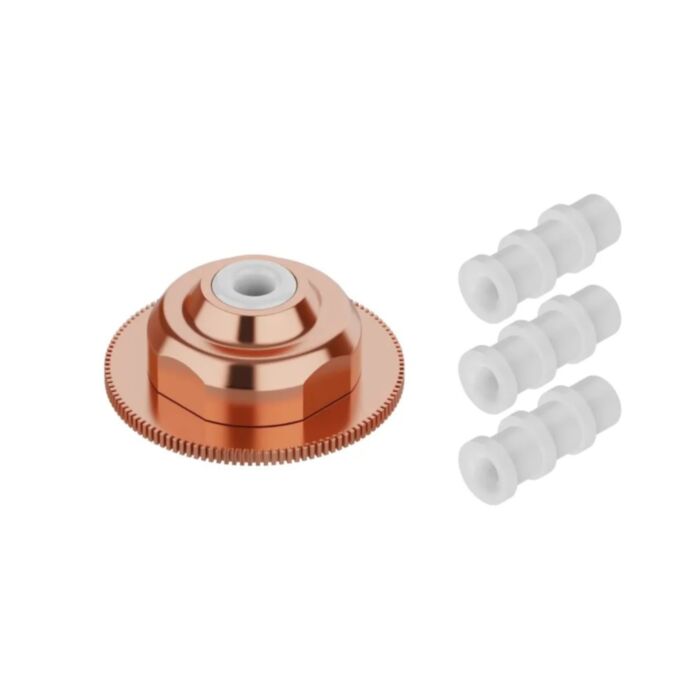

What's Included

• 1x SaveGas telescopic cutting nozzle
• 10x Replacement ceramic rings
