xTool MetalFab Ordinary Cutting Nozzle - 5 Pack

SKU: CE11185 Brand: xTool

Genuine spare nozzles for the MetalFab cutting tip - keep your cuts crisp and scratch-free without pausing mid-job.

$108.90 AUD, inc GST
$99.00 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 30 and Nov 02

0 from local stock, supplier stock; your order will dispatch . And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Precision metal cutting comes down to the consumable nozzle at the very end of the laser path, and this five-pack keeps a fresh one within arm's reach.

Nozzles are wear items. Spatter, heat and the occasional collision gradually distort the opening, and once gas flow stops being symmetrical, the cut edge starts showing dross and taper. The MetalFab CNC cutter ships with a single ordinary nozzle installed, so a damaged tip mid-job means downtime unless you keep spares on the shelf.

The ordinary nozzle is the one to reach for when surface finish matters. It cuts without touching the workpiece, unlike the SaveGas telescopic nozzle, which contacts the sheet and can leave scratches that need polishing out afterwards. For thin stainless steel, brass, aluminium, galvanised sheet and carbon steel, it delivers the cleanest edge the machine is capable of.

Gas demands stay modest. Metals under 1 mm cut at just 0.6 MPa, well within reach of the compressor and dryer, and thicker stainless steel, brass and aluminium simply need the pressure lifted rather than a different nozzle fitted.

Features

  • Cuts without contacting the material, so parts come off the bed free of the surface scratches a contact-style telescopic nozzle can leave behind
  • Runs thin material on modest gas - metals below 1 mm cut at only 0.6 MPa
  • Extends to thicker stainless steel, brass and aluminium by raising pressure to 1.2 MPa, with no nozzle swap required
  • Five nozzles per pack, so a damaged tip costs you minutes rather than a job
  • Genuine xTool consumable, seating correctly on the cutting tip without the fit-and-hope of a generic replacement

Specifications

Property Specification
Nozzle type Ordinary (non-contact)
Compatible machine xTool MetalFab Laser Welder & CNC Cutter
Mounting Cutting tip of the welding head
Quantity 5 nozzles
Gas pressure, material under 1 mm 0.6 MPa
Gas pressure, thicker stainless steel / brass / aluminium 1.2 MPa
Suitable materials Stainless steel, brass, aluminium, galvanised sheet, carbon steel
Not suitable for Carbon steel and galvanised sheet 2 mm and above — use the double-layer nozzle with oxygen
Fitting note Recalibrate the focus position after fitting a larger-diameter nozzle

Resources

What's Included

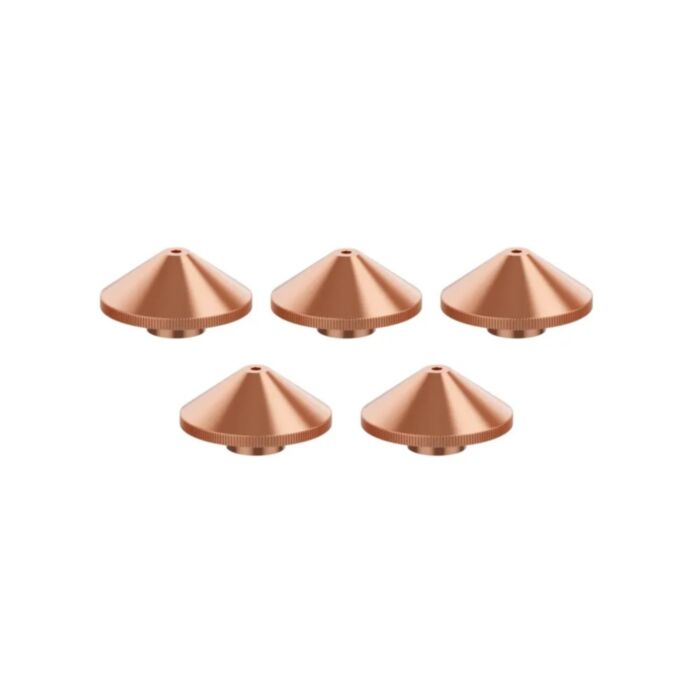

  • 5x xTool MetalFab ordinary cutting nozzles
