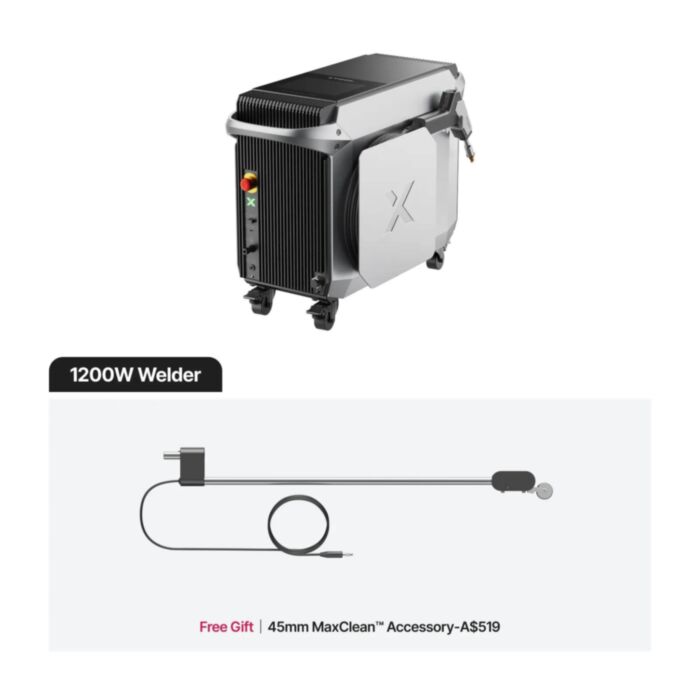

MetalFab Laser Welder Unit (1200W)
Fabricate metal components with ease- this fibre laser workstation provides a robust solution for cutting carbon steel up to 10mm and handheld welding with 8x the speed of traditional TIG setups.
Out of Stock
Sign up to get notified when it's available to order.
This equipment uses a laser and has the following restrictions:
- The equipment is not intended for sale to the general public
- The equipment is intended to be used in trades, professions or industries
- The domestic or international prototype/product this equipment is to be used in will comply with relevant laws
- The end-user of this equipment is licensed and trained to safely work with lasers
A declaration of use will need to be submitted during checkout.
The xTool MetalFab is an industrial-grade, 3-in-1 fibre laser workstation that integrates professional welding, cutting, and surface cleaning into a single, cohesive system (CNC system available seperately). Engineered to bring heavy-duty metal fabrication to the desktop, it utilises a high-performance 1200W fibre laser source to process a wide array of metals with surgical precision.
For makers and engineers, the transition from cutting a part to welding a finished assembly traditionally requires separate machines, complex gas setups, and significant floor space. The MetalFab eliminates these barriers by providing a unified workflow, allowing you to switch between high-speed cutting and precision handheld laser welding without the steep learning curve or equipment overhead of traditional TIG or plasma setups.
Built with a focus on reliability and repeatability, the unit features a high-precision gantry and integrated gas management systems that ensure consistent results on materials like stainless steel, brass, and aluminium. As an official xTool solution, it offers seamless hardware-software integration through xTool Creative Space, providing a "plug-and-play" experience for professional metal fabrication.
Core Features
- Streamline your workshop footprint by consolidating welding, cutting, and rust removal into one machine, replacing three bulky industrial units with a single desktop-friendly footprint.
- Reduce production time by up to 80% compared to traditional TIG welding, thanks to a 1200W fibre source that penetrates metals faster and creates cleaner, stronger joints with minimal heat-affected zones.
- Maximise material efficiency and lower project costs using the dual-camera AI system, which allows for precise part nesting and accurate positioning on offcuts or irregular sheets.
- Weld complex geometries with ease using the ergonomic handheld laser torch, which provides the flexibility to join components that are too large or intricate for automated gantry welding.
Specifications
| Property | Specification |
|---|---|
| Laser Type | Fiber Laser (1080 ± 10 nm) |
| Output Power | 1200W |
| Max Cutting Thickness (Carbon Steel) | 10mm |
| Max Cutting Thickness (Stainless/Aluminium) | 8mm |
| Welding Range | 0.2mm - 5.0mm (Stainless/Carbon Steel) |
| CNC Positioning Accuracy | 100μm |
| Max Movement Speed | 400mm/s |
| Camera Resolution | 16MP Panoramic + Z-axis Macro |
| Input Power | AC 220V - 240V, Max 21A |
| Machine Weight | ~38.2kg (Combined) |
| Safety Rating | Class 4 Laser |
