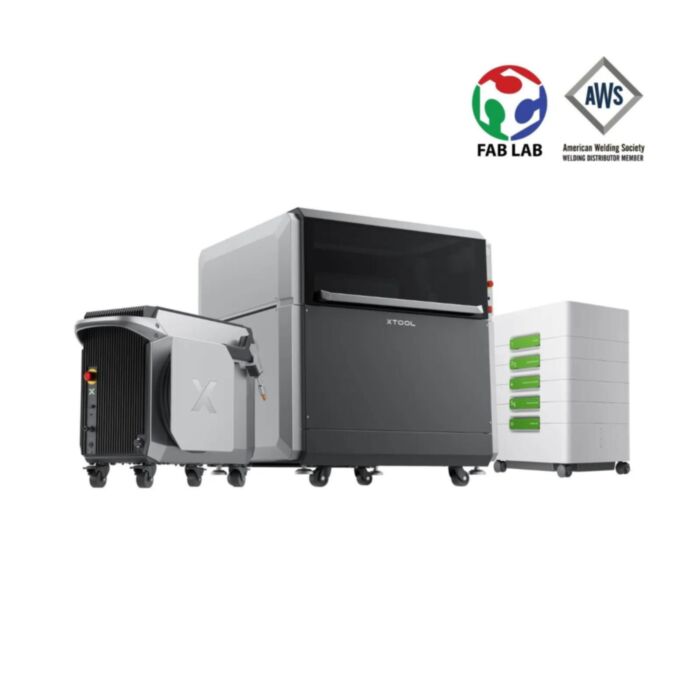

MetalFab 1200W All-in-One: Laser Welder + CNC Laser Cutter Bundle
A compact, all-in-one metalwork system with industrial quality and power - weld, laser‑cut, and clean with camera‑guided precision, one‑click presets and high reliability.
Available with a lead time
Expect dispatch between Oct 30 and Nov 02
Recommended Essentials:
$184.79 inc GST
This product incorporates a laser system. Before purchasing or using laser equipment (including modules, components, or complete machines such as laser cutters and engravers), please consider the following:
- These products are intended for professional, educational, industrial, or supervised workshop environments.
- Operators should be appropriately trained and understand laser safety practices, including enclosures, signage, PPE, and safe operating procedures where applicable.
A declaration of use will need to be submitted during checkout.
Industrial-grade metal fabrication in a single, camera‑guided system. Weld, CNC‑laser cut, clean from one platform - no steep learning curve, pro‑quality results quickly. Cuts carbon steel up to 10 mm, welds stainless/carbon up to 5 mm.
Why You’ll Love It
- All‑in‑one workflow: handheld laser welding, mobile cutting and cleaning, plus fully enclosed CNC laser cutting/cleaning in one ecosystem.
- Serious cutting power: the 1200W fibre laser can cut carbon steel up to 10 mm in one pass, combined with CNC precision to 0.1 mm.
- Fast setup, easy learning curve: 108+ one‑click material presets on the 8" touch screen.
- Smarter nesting, less waste: dual‑camera system with 16 MP panoramic view significantly increases the yield per sheet.
- Save on assist gas: xTool’s SaveGas Nozzle solution enables burr‑free 4 mm stainless cuts at ~0.6 MPa compressed air.
- Built for the long haul: industrial control, adaptive thermal management and cooling; designed for 24/7 output and long service life.
- Safety first: multi‑layer protections on a Class 4 system, and the enclosed CNC cutter is Class 1.
What’s in the Box
- MetalFab 1200W Laser Welder unit
- MetalFab CNC Cutter
- Wire Feeder + stainless steel filler wire (1.0 mm)
- Welding Cutting tip, autogenous welding nozzle, and cleaning nozzle
- CNC Nozzles: 1x cleaning nozzle, 1x SaveGas telescopic cutting nozzle, 1x ordinary nozzle
- CNC cutting tip
- Laser safety glasses and heat‑resistant gloves
- SafetyPro AP2 Max Air Purifier
We recommend purchasing a suitable laser welding helmet alongside this bundle.
Additional gases and fittings are required for welding, we are happy to offer assistance! Please get in touch if you have any questions.
Capabilities
- Handheld Welding: stainless/carbon steel up to 5 mm (1200W).
- Handheld Cutting/Cleaning: mobile laser head for on‑bench operations.
- CNC Laser Cutting: burr‑free up to 5 mm stainless, 4 mm aluminium, 3 mm brass; carbon/galvanised steel up to 10 mm (12 mm with dross). Accuracy up to ±0.1 mm.
- Software: xTool Studio with 108+ presets, auto lead‑in and path optimisation; AI‑assisted features.
Technical Specifications
Laser Welder (1200W)
- Laser type: Fibre; modes: continuous, spot, pulse
- Processing thickness (welding): 0.2–5.0 mm (stainless/carbon)
- Supply: 200–240 VAC, ~4.2 kW max, ~21 A; dedicated circuit recommended
- Safety: Class 4
- Operating environment: −10 to 40 °C
- Typical materials: stainless steel, aluminium, brass, carbon steel, galvanised sheet, titanium, nickel alloys, magnesium
- Approx. welder unit size/weight: 728 × 327 × 512 mm; ~38.2 kg
CNC Cutter
- Working area: 610 × 610 mm (24.02" × 24.02")
- Max working speed: 400 mm/s
- Motion accuracy: ±0.1 mm
- Safety: protective lid and enclosure, with laser handpiece mounted inside; though care must be taken
- Enclosure footprint/weight (approx.): 1175 × 1157 × 1230 mm; ~150 kg
Assist gases and cutting notes
- Burr‑free stainless/aluminium/brass up to listed thicknesses using compressed air or Nitrogen/Argon; further savings with SaveGas nozzle plus xTool's compressor and dryer
- For thick carbon steel, use high‑purity oxygen at low pressure with the double‑layer nozzle set (D1.0 < 8 mm; D1.2 ≥ 8 mm).
Included Filtration
- SafetyPro AP2 Max Air Purifier removes fumes/particulates for indoor operation when appropriately ducted.
Compliance and safety
Class 4 laser system. Operators must use appropriate PPE and follow local regulations. For AU/NZ mains, a 230–240 VAC 21A supply on a dedicated high-power circuit is required; installation by a licensed electrician is required.
Shipping:
- Pallet delivery: forklift unload from $200
- FREE Pickup (Newcastle only)
Exact shipping can be calculated on the view cart page.
