xTool M2 20W Colour Craft Laser Cutter - Deluxe Bundle
All of the extra accessories you need to unlock the full capability of the M2 - allowing for the full print, cut and engrave process on flat and round materials.
Available with a lead time
Expect dispatch between Sep 30 and Oct 01
This product incorporates a laser system. Before purchasing or using laser equipment (including modules, components, or complete machines such as laser cutters and engravers), please consider the following:
- These products are intended for professional, educational, industrial, or supervised workshop environments.
- Operators should be appropriately trained and understand laser safety practices, including enclosures, signage, PPE, and safe operating procedures where applicable.
A declaration of use will need to be submitted during checkout.
Full-colour printing and laser cutting finally live inside the same desktop enclosure. Print a design, then let the machine contour-cut around it - one setup, one alignment, no additional steps.
Print-then-cut workflows normally mean two devices and a tedious material registration step between them, and every misalignment can cost a sheet of material. Dual onboard cameras handle placement here, so what you see on the canvas is where the laser goes.
A massive range of materials can be used on this machine, paper, felt, acrylic, cardboard just to name a few - and delve into metal etching with the optional 3W IR Laser Module. Keep your workshop fume free with the xTool SafetyPro AP2 Air Purifier.
Features
- Includes all of the basic add-ons you can start cutting ASAP!
-
Places your design exactly where you put it on screen, using dual built-in cameras rather than manual jigging
-
Adds true print-then-cut with the optional CMYK inkjet head, so stickers and labels come off the bed finished
-
Holds thin stock without fuss, magnetic fixtures clamp material up to 6 mm, thicker pieces sit on top of them
-
Runs a built-in air pump for cut quality comparable to an external air-assist system, with adjustable airflow
-
Fully enclosed Class 1 operation, safe to run on a desk in a shared room
- Cuts thicker material in fewer passes than the 10W, thanks to the 20W blue diode module - less edge charring from repeated cuts
Specifications
|
Property |
Specification |
|---|---|
|
Laser type |
20W blue diode |
|
Processing modes |
Laser engraving, laser cutting, inkjet printing |
|
Safety certification |
Class 1 (fully enclosed) |
|
Machine dimensions |
610 x 569 x 180 mm |
|
Weight |
12.3 kg |
|
Max machine input power |
200 W |
|
Power adapter input |
100-240 V AC, 50/60 Hz |
|
Cylindrical engraving |
0-100 mm diameter, no riser base required |
|
Air assist |
Built-in pump; no external air port |
|
Software |
xTool Studio |
Resources

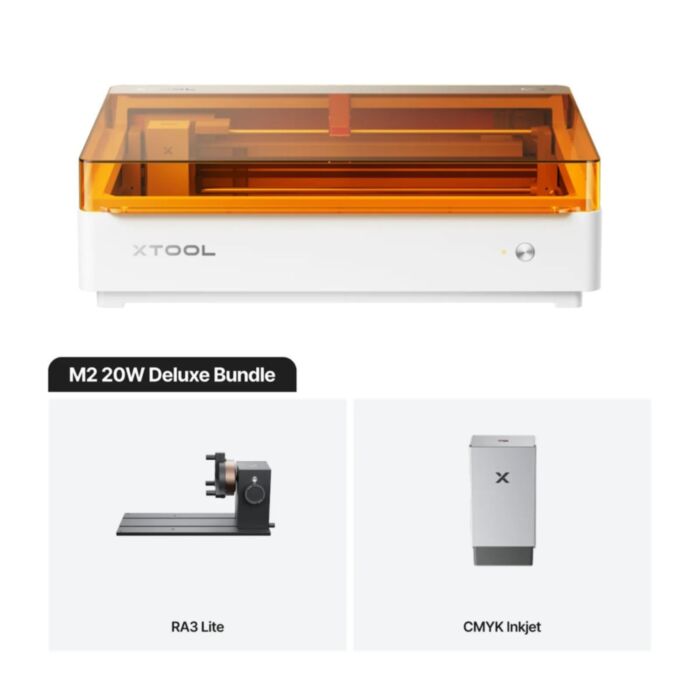

What's Included
- xTool M2 CMYK Inkjet Printing Module
- xTool RA3 Lite Rotary Attachment for M2
-
Required Power Adapter and Cables
intro
3W IR module and Air Filter/Purifier sold separately
Ink refill cartridges can be purchased here.
