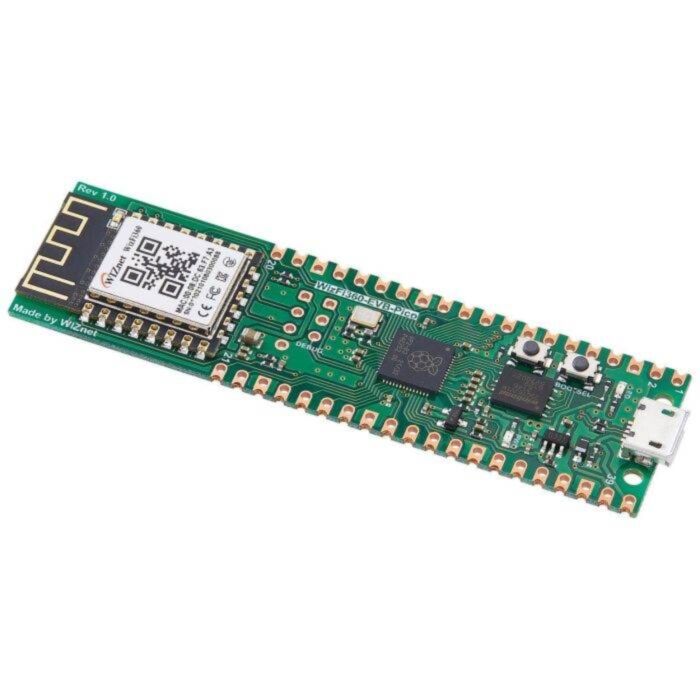

The WizFi360-EVB-Pico is based on the Raspberry Pi RP2040 microcontroller featuring onboard WiFi connectivity through the WIZnet WizFi360 SoC.
Features
The WizFi360 pins are directly connected to the GPIO of RP2040 as shown in the product pictures above. It has the same pinout as the Raspberry Pi Pico board. However, GPIO4, GPIO5, GPIO6, GPIO7, and GPIO20 are reserved for the WizFi360 on the board. These pins enable UART communication with the WizFi360.
Pin Usage
I/O | Pin Name | Description |
---|---|---|
O | GPIO4 | Connected to RXD1 on WizFi360 |
I | GPIO5 | Connected to TXD1 on WizFi360 |
O | GPIO6 | Connected to RTS1 on WizFi360 |
I | GPIO7 | Connected to CTS1 on WizFi360 |
O | GPIO20 | Connected to RST on WizFi360 |
I | GPIO24 | VBUS sense - high if VBUS is present, else low |
O | GPIO25 | Connected to user LED |
I | GPIO29 | Used in ADC mode (ADC3) to measure VSYS/3 |
