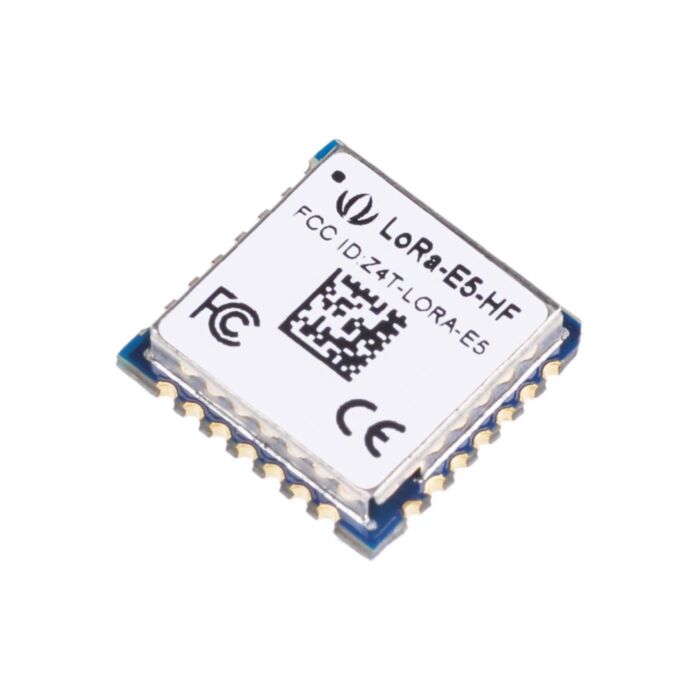

Wio-E5 Wireless Module (Tape Reel)

SKU: SS317990829 Brand: Seeed Studio

LoRa-E5 is a low-cost, ultra-low power, extremely compact, and high-performance LoRaWAN Module designed by Seeed Technology Co., Ltd

$18.20 AUD, inc GST

$16.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $15.88 (exc GST)
25+ $15.39 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

LoRa-E5 is a low-cost, ultra-low power, extremely compact, and high-performance LoRaWAN Module designed by Seeed Technology Co., Ltd. It contains ST system-level package chip STM32WLE5JC, and STM32WLE5 is the first SoC integrated with the combo of LoRa RF and MCU chip. This module is also embedded with ARM Cortex M4 ultra-low-power MCU and LoRa SX126X and therefore supports (G)FSK mode and LoRa.

The previous versions of the LoRaWAN module all require additional use of MCU (Microcontroller) to run the application code. Now, you can directly and immediately put the LoRa-E5 STM32WLE5JC Module into use to complete this process without the hustle of additional accessories. With the Stamp Hole form factor, LoRa-E5 enables you to integrate this module on your device’s mainboard conveniently. You don’t need to waste time and effort on designing your own device from scratch with the use of MCU and LoRa chip. Moreover, the module has already been certificated, so your completed device can be certified and approved by any agency cheaply and rapidly. Thanks to the innovative design, LoRa-E5 has a comparatively lower cost than other LoRaWAN modules. This will greatly save your budget in the whole process of product design.

LoRa-E5 LoRaWAN® module is highly suitable for long-distance, ultra-low-power applications such as smart agriculture, smart city, wireless meter reading, sensor networks, wireless communication, and other low-power wide-area IoT scenarios. If you want a module to design your own LoRaWAN sensor, construct IoT nodes, or support any wireless communication applications, LoRa-E5 is the premium choice that provides you with an optimal user experience.

This LoRa E5 module is designed with industrial standards, hence it's highly suitable to be used in designing industrial IoT products, with a wide working temperature of -40°C ~ 85°C.

Seeed is the official ST Authorized Partner to bring you STMicroelectronics solutions from Modules to Development Boards, one-stop prototyping services with Seeed Fusion, and integration customization.

If you are not quite familiar with LoRa and would like to learn more about it including what is LoRa? How does LoRa function? What are the pros and cons of LoRa? LoRa and LoRaWAN, LoRa network architecture, and applications of LoRa, etc., please check out this article LoRapedia, which introduces LoRa and LoRaWAN in detail.

Features

Ultra-low Power Consumption: as low as 2.1uA sleep current (WOR mode)
Extremely Compacted Size: 12mm * 12mm * 2.5mm 28 pins SMT
High Performance: TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
Long Distance Use: 158dB link budget
Wireless Connectivity: Embedded LoRaWAN® protocol, AT command, support global LoRaWAN® frequency plan
Worldwide Compatibility: wide frequency range; EU868/US915/AU915/AS923/KR920/IN865
Great Flexibility: For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.
FCC and CE Certified

Application Note

For more detailed information about how to use LoRa-E5, please visit LoRa-E5 (STM32WLE5JC) Module Wiki.

1. Factory AT Firmware

LoRa-E5 series has a built-in AT command firmware, which supports LoRaWAN Class A/B/C protocol and a wide frequency plan: EU868/US915/AU915/AS923/KR920/IN865. With this AT command firmware, developers can easily and quickly build their prototype or application.

The AT command firmware contains a bootloader for DFU and the AT application. The "PB13/SPI_SCK/BOOT" pin is used to control LoRa-E5 to stay in the bootloader or jump to the AT application. When PB13 is HIGH, the module will jump to AT application after reset, with a default baud rate of 9600. When PB13 is LOW (press the "Boot" button on LoRa-E5 Dev Board or LoRa-E5 mini), the module will stay in the bootloader, and keep transmitting "C" character every 1S at baud rate 115200.

Attention

1. Factory AT Firmware is programmed with RDP (Read Protection) Level 1, developers need to remove RDP first with STM32Cube Programmer. Note that regression RDP to level 0 will cause a flash memory mass to erase and the Factory AT Firmware can't be restored again.

2. The "PB13/SPI_SCK/BOOT" pin on the LoRa-E5 module is just a normal GPIO, not the "BOOT0" pin of the MCU. This "PB13/SPI_SCK/BOOT" pin is used in the bootloader of the Factory AT firmware, to decide to jump to APP or stay in bootloader(for DFU). The real "BOOT0" pin doesn't pinout to the module, so developers need to be careful when developing low-power applications.

2. Clock Configuration

2.1 HSE

32MHz TCXO
TCXO power supply: PB0-VDD_TCXO

2.2 LSE

32.768KHz crystal oscillator

3. RF Switch

LoRa-E5 module ONLY transmits through RFO_HP:

Receive: PA4=1, PA5=0
Transmit(high output power, SMPS mode): PA4=0, PA5=1

Specifications

ITEMs	Parameter	Specifications				Unit
Core	MCU	ARM Cortex M4
Core	Storage	256KB Flash, 64KB SRAM				KB
Structure	Size	12(W)12(L)2.5(H)				mm
Structure	Package	28 pins, SMT
Electrical Characteristics	power supply	3.3V type				V
	Minimum sleep current	2.1uA(SOC)				uA
	Operation current (Transmitter+MCU)	50mA @10dBm in 434MHz type				mA
		111mA @22dBm in 470MHz type
		111mA @22dBm in 868MHz type
	Operation current (Receiver+MCU)	6.7mA @BW125kHz, 868MHz type				mA
		6.7mA @BW125kHz, 434MHz type
		6.7mA @BW125kHz, 470MHz type
	Output power	10dBm max @434MHz				dBm
		22dBm max @470MHz
		22dBm max @868MHz
	Sensitivity	@SF12, BW125kHz				dBm
		Fr(MHz)	min	type	max
		434	-	-134.5	-136
		470	-	-136.5	-137.5
		868	-	-135	-137
	Harmonics	< -36dBm below 1GHz				dBm
	Harmonics	< -40dBm above 1GHz				dBm
Interface	RFIO	RF port
	UART	3 group of UART, include 2 pins
	I2C	1 group of I2C, include 2 pins
	ADC	1 ADC Input, include 1 pins, 12-bit 1Msps
	NRST	Manual reset pin input
	SPI	1 group of SPI, include 4 pins

Resources

Datasheet:

LoRa-E5 datasheet and specifications

LoRa-E5 AT Command Specification

STM32WLE5JC Datasheet

Certifications:

LoRa-E5-HF Certification CE-VOC-RED

LoRa-E5-HF FCC Certification -DSS

LoRa-E5-HF FCC Certification -DTS

Library:

LoRa-E5 kicad library

LoRa-E5 HF 3D File

LoRa-E5 Eagle Library

Relevant SDK:

STM32Cube MCU Package for STM32WL series
