WiFi Antenna with w.FL / MHF3 / IPEX3 Connector

SKU: ADA5445 Brand: Adafruit
That's one slim cellular antenna! At about 220mm long from tip to tip and with a cable thickness of just 0.8mm, this 2.4GHz WiFi or BLE antenna is...
$5.35 AUD, inc GST
$4.86 AUD, exc GST

Available with a lead time
Expect dispatch between May 23 and May 27

Quantity Discounts:

  • 10-25 $4.67 (exc GST)
  • 25+ $4.53 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Description

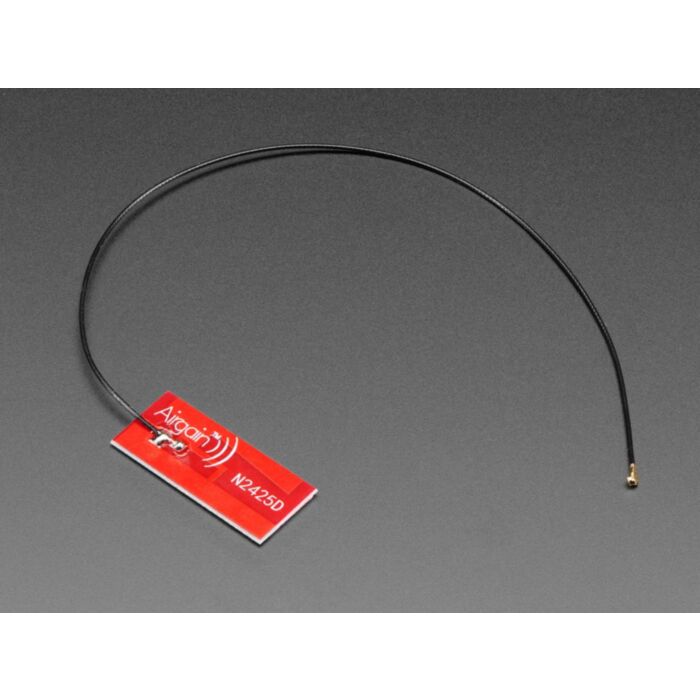

That's one slim cellular antenna! At about 220mm long from tip to tip and with a cable thickness of just 0.8mm, this 2.4GHz WiFi or BLE antenna is slim, compact, and sensitive, with a 4dBi gain. The antenna is the trace on the PCB that is at the end of the skinny coaxial cable. It has an adhesive sticker back, so you attach it to an enclosure.

It has a tiny MHF3/ IPEX3 / wFL / w.FL connector on the end - not a uFL connector! If you need a 2.4GHz antenna with uFL which is larger, check out this product.

A perfect match for Adafruit's Feather ESP32 V2 with w.FL antenna port.

Technical Details

  • Frequency range: 2400 ~ 2700 MHz
  • Characteristic impedance: 50 ohm
  • Peak Gain: 4 dBi
  • VSWR: <= 2.0
  • PCB dimensions: 32mm x 14mm x 0.8mm
  • Cable length: 20mm
  • Connector: IPEX3 / MHF3 / w.FL
