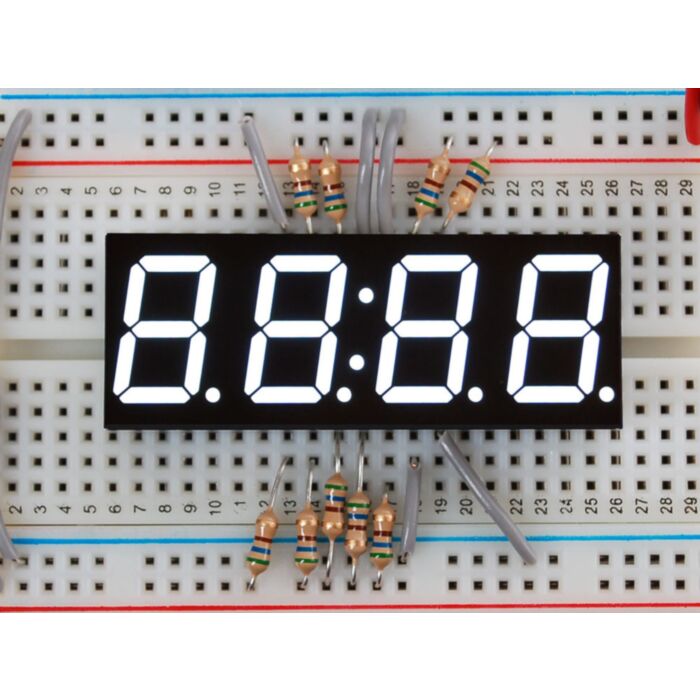

White 7-segment clock display - 0.56 digit height

SKU: ADA1001

$8.50 AUD, inc GST
$7.73 AUD, exc GST

More Views

White 7-segment clock display - 0.56 digit height
8.5 AUD

SKU: ADA1001

$8.50 AUD, inc GST
$7.73 AUD, exc GST
0 units ship today
Contact us if you need this product urgently

Design a clock, timer or counter into your next project using Adafruit's pretty 4-digit seven-segment display. These bright crisp displays are good for adding numeric output. Besides the four 7-segments, there are decimal points on each digit and an extra wire for colon-dots in the center (good for time-based projects).

These are ultra bright 150mcd! You can drive these with less current to get the same brightness to save power, or crank them up to 20mA and have them really bright.

These displays are multiplexed, common-cathode. What that means it that you can use a 74HC595 or just 8 microcontroller pins if you can spare them to control the 8 anodes (7-seg + decimal) at about ~15mA each, and then connect NPN transistors or a TPIC6B595 to the cathodes to sink the 8*20mA = ~120mA maximum per digit.

These come in a bright white color, We also have many other sizes and colors!

Technical Details

  • This is a Common Cathode LED display
  • Dimensions: 0.76" x 1.9" (19.3mm x 50.3mm) Weight: 8.3g
  • Datasheet
Documentation and Resources:
