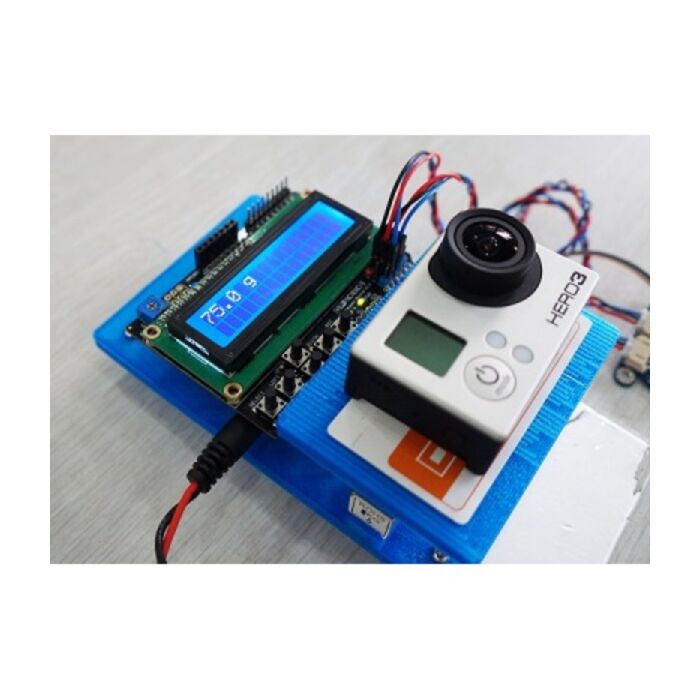

Weight Sensor Module

SKU: SEN0160

$27.27 AUD, inc GST
$24.79 AUD, exc GST

More Views

Weight Sensor Module
27.27 AUD

SKU: SEN0160

$27.27 AUD, inc GST
$24.79 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 134 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 23rd of Jul with Express Post within Australia.
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

Weight Sensor Module is based on HX711, which is a precision 24-bit analog-to-digital convertor designed for weight scale and industrial control applications to interface directly with a bridge sensor. It not only has a few basic functions, but also contains high integration, fast response, immunity, and other features. This weight sensor lowers the cost of the electronic scale, and at the same time improving the performance and reliability. The input interface is compatible with Arduino I/O port. The output adopts compact terminal that makes the sensor easier to connect. It's the best choose for electronic enthusiast to do some tiny home scale.

Sensor connection Note:Red Line    -- E+
                                                White Line  -- E-
                                                Black Line  -- S-
                                                Green Line -- S+


Specifications

24-Bit Analog-to-Digital Converter for Weight Scales (HX711)
  • Two selectable differential input channels
  • On-chip active low noise PGA with selectable gain of 32,64 and 128
  • On-chip power supply regulator for load-cell and ADC analog power supply
  • On-chip oscillator requiring no external component with optional external crystal
  • On-chip power-on-rest
  • Simple digital control and serial interface: pin-driven controls, no programming needed
  • Selectable 10SPS or 80SPS output data rate
  • Simultaneous 50 and 60Hz supply rejection
  • Supply Voltage: 2.6V~5.5V
  • Current: <1.6mA
  • Working temperature: -40~85°C
  • 16 pin SOP-16 package
Weight Sensor Module
  • Range:1kg
  • Excitation voltage: 5-15 V
  • Output sensitivity: 1.0±0.15mV/V
  • Synthetical error: 1 per thousand cent of full scale
  • Zero shift: 0.05/0.03 (30min)%F.S
  • Zero temperature shift: 0.05/0.03 %F.S/10°C
  • Zero output: ±0.1mV/V
  • Input impedance: 1055±15 Ω
  • Output impedance: 1000±5 Ω
  • Overload capability: 200 %F.S
  • Output: Analog output
  • Size: 33mm*38mm
Shipping List
  • Weight sensor module  1 uint
  • Weight sensor                 1 uint
  • sensor cable                   2 uint
Documents
Documentation and Resources:
