Weatherproof TTL Serial JPEG Camera with NTSC Video and IR LEDs

Rating:

100% of 100

SKU: ADA613 Brand: Adafruit

This weatherproof camera module is a classy upgrade to the basic camera module Adafruit already stock in the shop. The main differences is that this one comes in a nice...

$119.95 AUD, inc GST

$109.05 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 05

Quantity Discounts:

5-10 $104.68 (exc GST)
10+ $101.41 (exc GST)

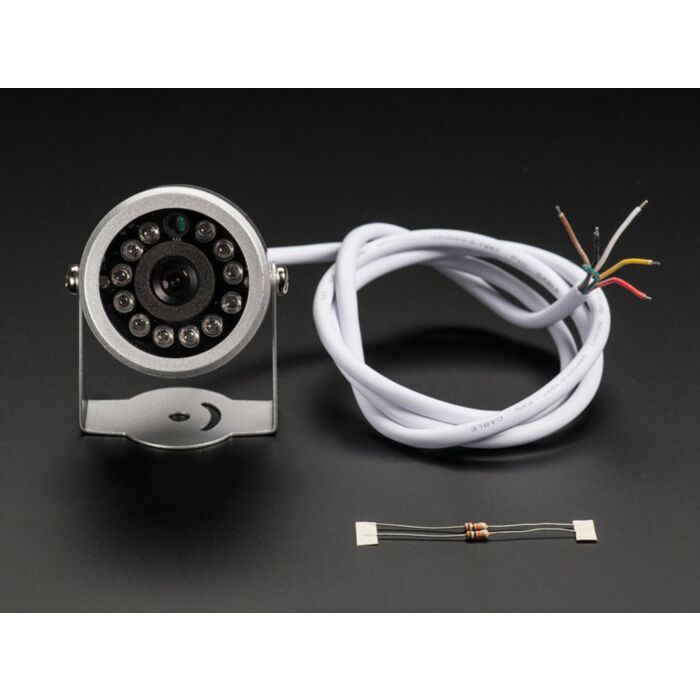

This weatherproof camera module is a classy upgrade to the basic camera module Adafruit already stock in the shop. The main differences is that this one comes in a nice metal case with a mounting hinge, a 1 meter long cable with the TTL & NTSC signals brought out, and it has an automatic IR LED system for night time photos. When the onboard photo-cell detects that it is too dark for the camera to take a photo, it turns on a ring of 12 IR LEDs that illuminate the nearby area for night-vision shots.

This camera was designed to be used in security systems and does two main things - it outputs NTSC video and can take snapshots of that video and transmit them over the TTL serial link. You can snap pictures at 640x480, 320x240 or 160x120 and they're pre-compressed JPEG images which makes them nice and small and easy to store on an SD card. Perfect for a data-logging, security, or photography project.

One nice thing about this particular camera is all the 'extras' that come with it. For example it has manually adjustable focus, auto-white-balance, auto-brightness and auto-contrast taken care of for you as well as motion detection built in! That means you can have it alert your project when something moved in the frame.

Using the module is pretty easy and only requires two digital pins (or a TTL serial port) - by default it transmits at 38400 baud. Of course Adafruit wouldn't just leave you with a datasheet and a 'good luck', Adafruit even spent a lot of time researching the module and DSP to make a really nice Arduino library with example code that shows how to change the image size and compression quality, detect motion, control the video output stream, etc. We also have a very detailed tutorial that will help get the most use out of your camera.

Example photo 1 (outside street) & example photo 2 (inside person)

Note: Adafruit have these working great with classic Arduino UNOs (and other Atmega328-based 'duinos) but they are not yet MEGA compatible.

Technical Details

Metal Housing size: 2" x 2" x 2.5"
Weight: 150 grams
Image sensor: CMOS 1/4 inch
CMOS Pixels: 30M
Pixel size: 5.6um*5.6um
Output format: Standard JPEG/M-JPEG
White balance: Automatic
Exposure: Automatic
Gain: Automatic
Shutter: Electronic rolling shutter
SNR: 45DB
Dynamic Range: 60DB
Max analog gain: 16DB
Frame speed: 640*480 30fps
Scan mode: Progressive scan
Viewing angle: 60 degrees
Monitoring distance: 10 meters, maximum 15meters (adjustable)
Image size: VGA(640*480), QVGA(320*240), QQVGA(160*120)
Baud rate: Default 38400, Maximum 115200
Current draw: 75mA without IR LEDs on. 250mA extra for IR LEDs
Operating voltage: DC +5V
Communication: 3.3V TTL (Three wire TX, RX, GND)

Downloads

Adafruit have a fairly full-featured Arduino library with examples that demonstrate how to use the camera
The datasheet for the DSP processor itself (not terribly useful for the module but good for reference
PTC-08 module datasheet contains dimensional drawings
This is the DSP management tool (windows only sorry!) it allows you to tweak pretty much everything on the camera as well as test it out via a serial port
A basic python sketch that will let you snag a image over a serial port - good for testing when you cant use the DSP tool above
This is the 'protocol cheat sheet' for the sensor its a little crummy - we suggest reading Adafruit's library code and porting it instead of trying to do it from scratch with this sheet
Check out Adafruit's detailed tutorial on how to use this camera module with an Arduino (and in general
Fabien's Netduino + Camera tutorial
