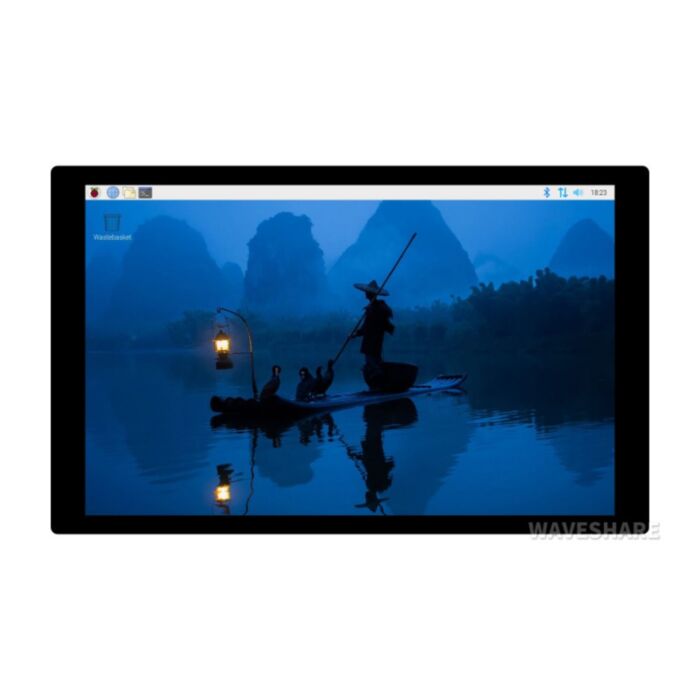

8-inch DSI Capacitive Touch Display (800×1280, IPS)

SKU: WS-30326 Brand: Waveshare

Crisp visuals and responsive touch-control. Featuring an optically bonded 800x1280 IPS panel and toughened glass.

Special Price $73.70 AUD, inc GST

Regular Price $94.00 AUD, inc GST

$67.00 AUD, exc GST

Special pricing ends 08 May 2026

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Feb 19 and Feb 23

A high-definition IPS screen designed to integrate seamlessly with Raspberry Pi and embedded systems. By utilising the Display Serial Interface (DSI), this unit connects directly to your board via a flexible flat cable, providing both video signal and touch data without the need for bulky HDMI adapters or separate power supplies.

Built for durability and professional integration, the panel features toughened glass with a hardness rating of up to 6H, making it resilient enough for public-facing kiosks or workshop interfaces. With a crisp 800×1280 resolution and 10-point capacitive touch support, it offers the responsiveness and visual fidelity expected in modern tablet-like interfaces, all while maintaining a slim 11.6mm profile thanks to its integrated driver circuitry.

Core Features

Streamlined DSI Connection: Connects directly to the Raspberry Pi DSI port, eliminating the need for HDMI cables and separate power bricks, resulting in a cleaner, more compact build.
Superior Visual Clarity: Uses optical bonding to fuse the touch panel and LCD, which significantly reduces light reflection, improves contrast, and prevents dust from getting trapped under the screen.
Wide Viewing Angles: The IPS panel technology ensures consistent colour and legibility from up to 178°, making it ideal for mounted control panels or dashboards.
Robust Build Quality: Features a toughened glass cover with 6H hardness, providing excellent scratch resistance and durability for interactive projects.

Specifications

Display Size	8-inch Diagonal
Resolution	800 × 1280 pixels (Portrait default, software configurable to Landscape)
Panel Type	IPS (In-Plane Switching)
Interface	DSI (Display Serial Interface)
Touch Type	Capacitive (10-Point)
Viewing Angle	178°
Brightness	400 cd/m²
Construction	Optical Bonding, Toughened Glass (6H Hardness)
Thickness	11.6mm
System Support	Raspberry Pi OS, Android, Ubuntu, Buildroot (Device dependent)

Resources

Wiki for 8inch Touch Display
