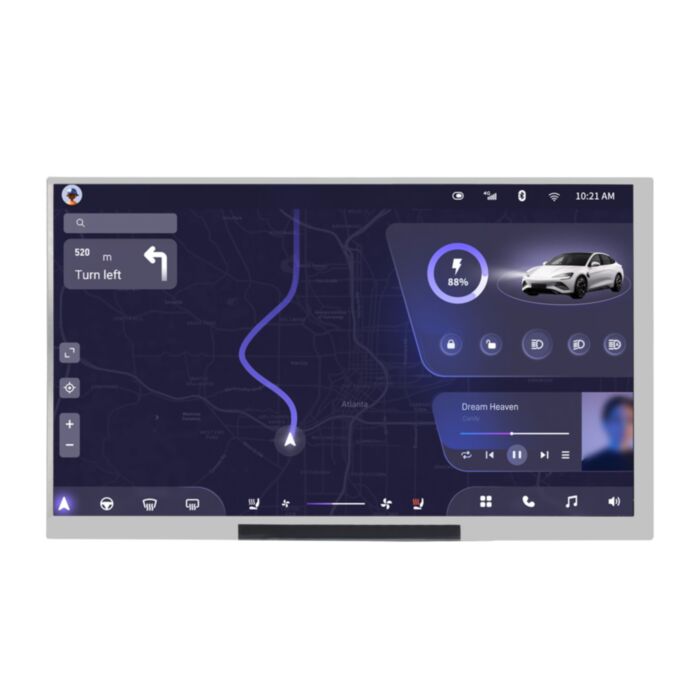

Waveshare 7inch IPS Raw Display with Adapter board (1024 × 600 Pixels)

SKU: WS-22672 Brand: Waveshare
7inch IPS/QLED Integrated Display, 1024 × 600, Thin and Light Design...
$63.60 AUD, inc GST
$57.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 6-12 $56.08 (exc GST)
  • 12+ $54.93 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

7inch IPS/QLED Integrated Display, 1024 × 600, Thin and Light Design
7-inch IPS/QLED Dispaly

Integrated Structure | Thin and Light Screen Design


  • Size7"
  • Resolution1024×600
  • Display PanelIPS/QLED
  • Viewing Angle170°
  • Touch TypeCapacitive(optional)
  • Touch Points5-Points(optional)
  • ConsumptionLow Power
  • Certification 1RoHS2.0
  • Certification 2CE
Device & System Support

Support Windows / Linux / Android main board which has HDMI signal and USB touch signal


Used with development adapter, support the following devices:

All versions of Raspberry Pi
Jetson Series Boards
Windows PC



Comparing The Appearance
Optional Development Adapter



Integrated Structure Design

Provide secondary development resources to facilitate integrated design
Boost simple development for embedding engineering applications quickly


Thinner and more space saving

Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space


170° Wide Viewing Angle

QLED Quantum Dot Technology

Wider color gamut

color gamut of this QLED display is up to: NTSC 78%, sRGB 92%

* This function is only available on the QLED version

More pure chroma

chroma of QLED increases 58.3%, makes the color more pure, more vivid

* This function is only available on the QLED version

Longer lifetime

due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation

* This function is only available on the QLED version

5-Point Capacitive Touch

Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation
Adapting touch function with USB signal, support 5-point touch

* This function is only available on the Touch Display version


Connection Example

For the first use, it is recommended to use development adapter for connection

* for reference, Raspberry Pi board is NOT included.

Interface Introduction

Application Scenarios

New energy, electronic sentinel, human-machine interface, smart home
IoT, Industrial applications, consumer electronics


Dimensions
Resources & Services
HDMI Thin & Light Display Selection
PART NUMBER Resolution Display Interface Display Panel Touch Interface Display size(mm) Product size(mm) Note
70H-1024600-IPS-A 1024×600 HDMI IPS - 154.21×85.92 164.00×97.00 -
70H-1024600-IPS-B With development accessories
70H-1024600-IPS-CT-A USB 173.00×103.00 -
70H-1024600-IPS-CT-B With development accessories
70H-1024600-QLED-A QLED - 164.00×97.00 -
70H-1024600-QLED-B With development accessories
70H-1024600-QLED-CT-A USB 173.00×103.00 -
70H-1024600-QLED-CT-B With development accessories

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Quick Overview

70H-1024600 IPS/QLED Display

  1. OPTIONS IPS/QLED Display x1
  2. FPC cable (~ 15cm) x1
  3. OPTIONS Development Accessories

70H-1024600 IPS/QLED Touch Display

  1. OPTIONS IPS/QLED Touch Display x1
  2. FPC cable (~ 15cm) x1
  3. OPTIONS Development Accessories
