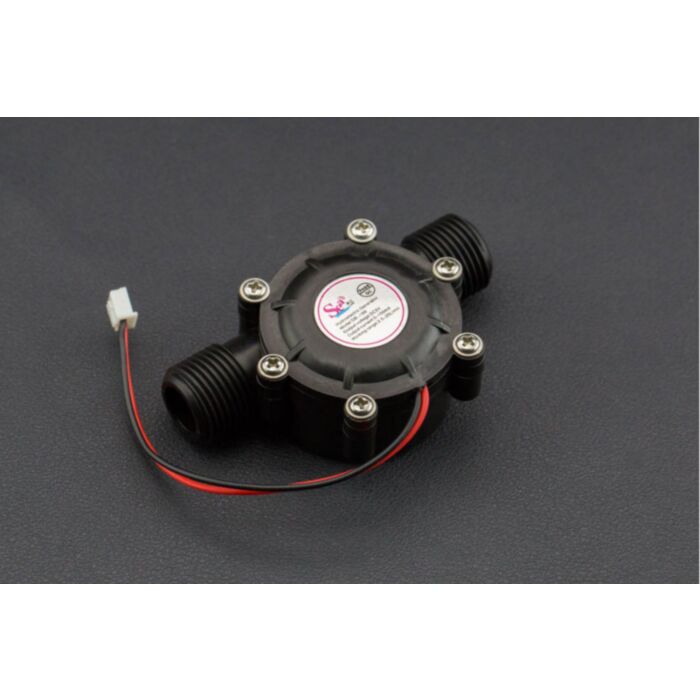

Water Turbine Generator (5VDC)

SKU: SEN0229 Brand: DFRobot

This is a water turbine generator, 5V DC output, which can be directly used as Arduino power supply. Eco-friendly energy, you can make it work together with our...

$15.39 AUD, inc GST

$13.99 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 13

Quantity Discounts:

10+ $13.78 (exc GST)

This is a water turbine generator, 5V DC output, which can be directly used as Arduino power supply. Eco-friendly energy, you can make it work together with our lithium battery charger, working as a backup energy.This water turbine generator can be used in various hydro power generator application, such as smart faucets, sensing faucets, shower room lighting systems etc. The module comes with regulated power output, which provides standard 5V DC output. The maximum output current is up to 150Ma which is enough for most light application.

Specification

Working Pressure: 0 ~ 1.0 Mpa

Tested Pressure: 0.6 MPa

Temperature Range: 0 ~ 80 °C (maximum permissible ambient temperature 100 °C max: 30 min)

Storage Temperature: -25 ~ 65 ° C

Flow range: 2.5 ~ 20L / min (pressure 0.05-0.2mpa)

Output Voltage: DC 5V (water flow 4L / min)

Output Current: 0-150mA

Output Voltage Starting Flow: DC 2.5V water flow 3.5L / min

Documents

Dimension

Parts List

Water Turbine Generator (5VDC) x1
