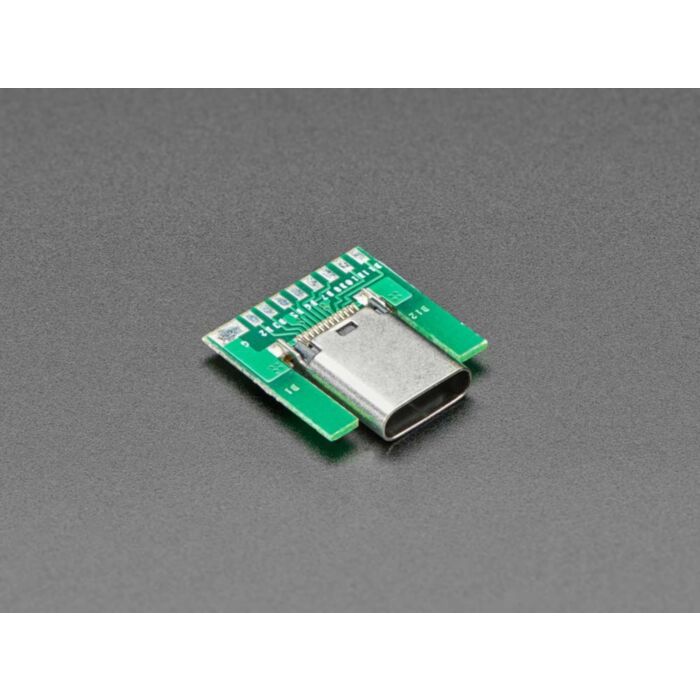

USB Type C Socket - SMT Inline Breakout Board

Rating:
100% of 100
SKU: ADA4396 Brand: Adafruit
This USB Type C breakout is kinda interesting, it looks similar to Adafruit's right angle USB C socket breakout, but it's an 'inline' style with pads for soldering to the...
$7.55 AUD, inc GST
$6.86 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 05 and Jun 10

Quantity Discounts:

  • 10-25 $6.59 (exc GST)
  • 25+ $6.38 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This USB Type C breakout is kinda interesting, it looks similar to Adafruit's right angle USB C socket breakout, but it's an 'inline' style with pads for soldering to the connections. We think it could be handy for making custom cable harnesses! Unlike Adafruit's breakout, it also has the true dual-row USB C connector and all pads broken out. It does not have any resistors to set direction/current - required to have USB C enumerate. It's really just a connector breakout. That said, it could be handy for inline connections that need a range of pin connections

For more details, Adafruit like this Introduction to USB C app note

Technical Details

Product Dimensions: 17.0mm x 15.6mm x 3.2mm / 0.7" x 0.6" x 0.1"

Product Weight: 1.0g / 0.0oz

This product is listed in:

Connectors & Sockets>USB
