USB Power Switch (Dual)

SKU: TPH-105499 Brand: The Pi Hut
Turn two of your USB devices on/off using a remote switch or a Raspberry Pi, Arduino and other microcontrollers! This is a dual-USB version of our popular...
$8.90 AUD, inc GST
$8.09 AUD, exc GST

Available with a lead time
Expect dispatch between May 16 and May 23

Quantity Discounts:

  • 10-25 $7.76 (exc GST)
  • 25+ $7.53 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

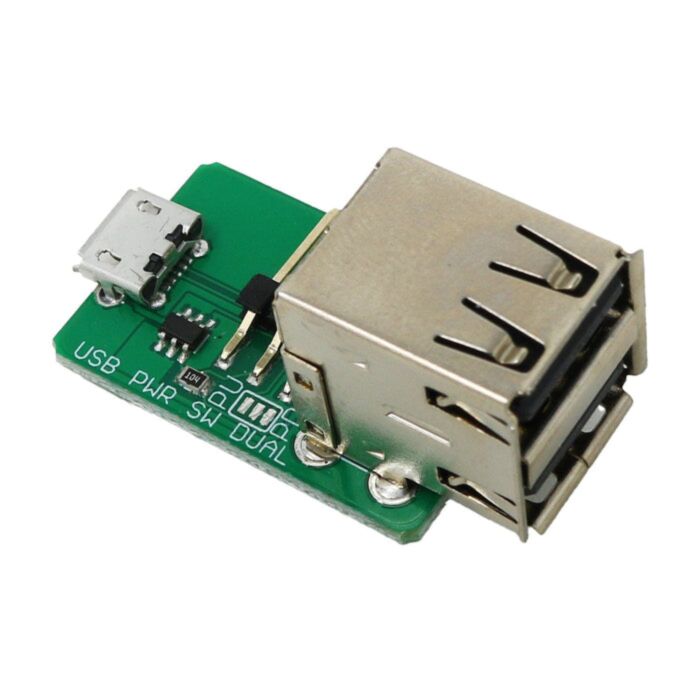

Turn two of your USB devices on/off using a remote switch or a Raspberry Pi, Arduino and other microcontrollers! This is a dual-USB version of our popular USB Power Switch Module.

This module enables power to turn two USB devices on/off via a USB power switch (MOSFET). Power goes IN via the micro-USB side and OUT via the dual USB Type-A socket (power for both sockets is toggled on/off together).

The maximum current rating for the switch is 2.5A shared across both ports. The onboard chip used is a SiP32508/9

A micro-USB cable or USB-C cable may be required (not included).

Configuration
  • Supplied with the PD (pull down) resistor set (Normally off).
  • Connectors on top for GND / EN / 5V
  • When the EN pin is connected to >2V (5V max) power to the device is turned on.
Example Usage
  • Simple toggle/slide switch at the end of a (long) cable, connecting 5V to EN to turn on.
  • Raspberry Pi/Arduino - Connect the GPIO pin to EN (and GND to GND) set the GPIO pin to output, and turn the pin on to enable power.

The USB Power Switch can be used to control power for many USB-powered devices such as Raspberry Pi Zero, Chromecasts, etc.

Please Note
  • Only for use with 5V supplies and devices - Using anything else may damage your power supply/charger/USB devices and the USB Power Switchboard
  • USB data lines are connected at all times
  • PCB colour may vary
  • Raspberry Pi/USB Power Monitor/Cables not included.
