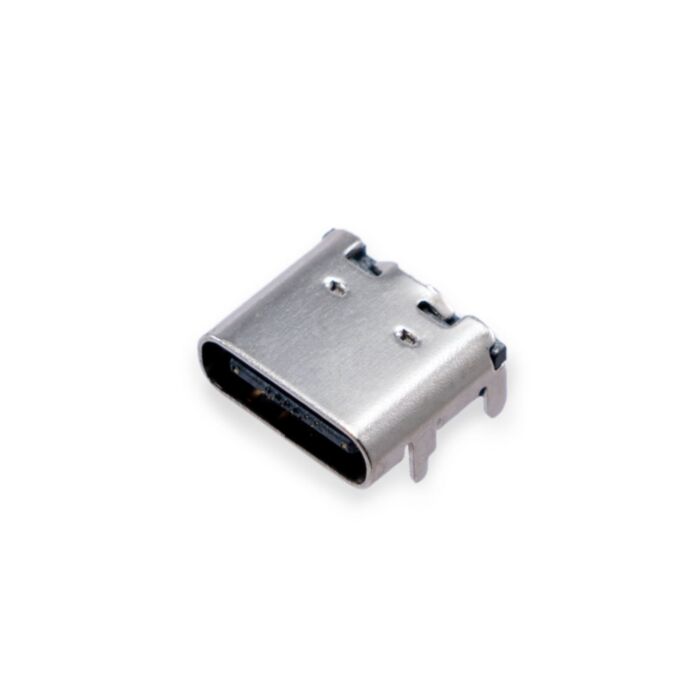

USB-C Female Connector (16-pins, Power and Data)

SKU: CE08402 Brand: Core Electronics

Design easy USB input into your SMD PCB projects with a USB-C connector with Power and Data...

$0.48 AUD, inc GST
$0.44 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Aug

- +

738 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Make your designs easy to use with a USB-C connector.

With 16 power and data pins broken out you'll be able to design modules for, charging LiPo's, development boards, and the list goes on!

Specifications

  • USB-C connector
  • Dimensions: 7.35mm x 8.94mm x 4.16mm
  • Maximum current: 5A
  • Maximum voltage: 5V
  • 5000 Mating cycles

Dimensions

usb c connector specifications and dimensions
