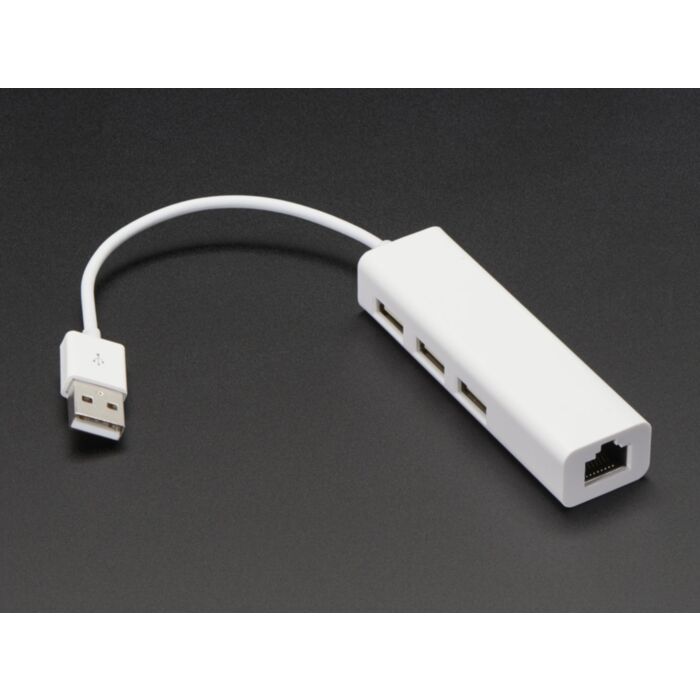

USB 2.0 and Ethernet Hub - 3 USB Ports and 1 Ethernet

SKU: ADA2909

$25.00 AUD, inc GST
$22.73 AUD, exc GST

More Views

USB 2.0 and Ethernet Hub - 3 USB Ports and 1 Ethernet
25 AUD

SKU: ADA2909

$25.00 AUD, inc GST
$22.73 AUD, exc GST
0 units ship today
Contact us if you need this product urgently

One can never have enough socks, or USB ports. Add some more USB and Ethernet capability to your Raspberry Pi or, really, any kind of computer with this USB 2.0 and Ethernet Hub!

This handy combo-hub has 3 USB 2.0 ports, and a AX88772A Ethernet transceiver. This chipset is really common and can be used by any Linux, Mac or Windows computer. It's particularly handy for the  Raspberry Pi A+ or brand new Raspberry Pi Zero which is tight on USB ports and has no Ethernet out. Adafruit did some basic tests and got 11+ MB/s transfer speeds on Adafruit's Pi Zero. Note that Ethernet draws a lot of power and you'll be looking at 280mA current draw when the hub is plugged in, even if the Ethernet itself isn't being used.

If you need a similar Ethernet hub but for a computer with a micro USB OTG port, check out this product

Note: Additional USB cables and accessories shown above are not included but Adafruit have a wide variety of types and lengths in the store!

Technical Details

  • 3x USB 2.0 ports
  • 1x Ethernet port
  • Supports 10Mbps and 100Mbps N-way auto-negotiation operation
  • Integrated fast Ethernet MAC, physical clip and transceiver in one chip
  • Powered by USB
  • Supports suspend/resume detection logic
  • Supports both full-duplex and half-duplex operations
  • Compliant with IEEE 802.3 (10Based-T) and 802.3u (100Based-TX) standards.
  • Compliant with USB interface versions 1.0/1.1/2.0
  • Linux, Windows and Mac compatible
  • Hub Dimensions: 23.4mm x 85.1mm x 16.6mm / 0.92" x 3.35" x 0.65"
  • USB cable length: ~110mm / ~4.3"
  • Weight: 29.7g
