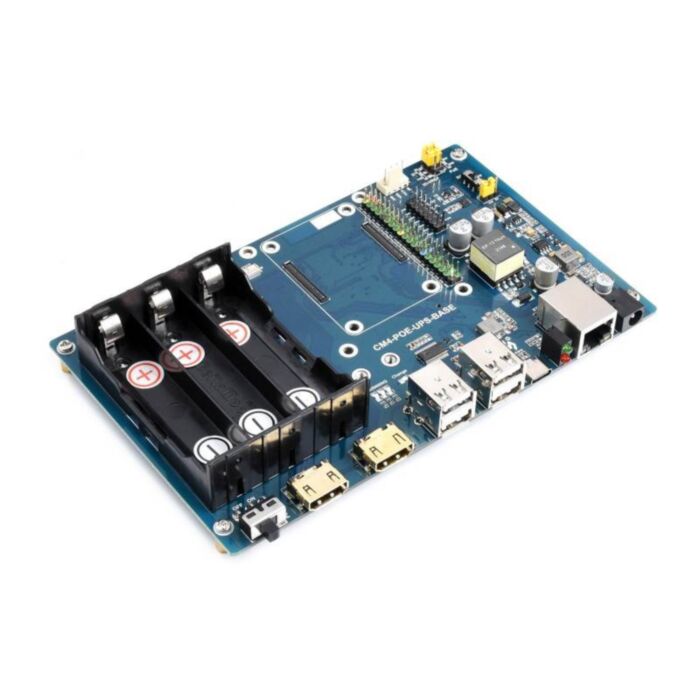

UPS Base Board for Raspberry Pi CM4 (with POE, Gigabit Ethernet)

SKU: WS-22116 Brand: Waveshare
Uninterruptible Power Supply for powering the CM4
$94.95 AUD, inc GST
$86.32 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

  • 6-12 $82.86 (exc GST)
  • 12+ $80.27 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Uninterruptible Power Supply for powering the CM4

Features

  • Three external power supply options: USB interface, wide voltage DC, and PoE
  • When connected to the external power supply, the system will be powered and the battery will be charged at the same time, and the battery will be in a disconnected status after being fully charged, so as to avoid battery life damaging caused by frequently charging and discharging
  • When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure system normal operation
  • When the external power supply is connected, the system will keep running normally even when the battery fails or is taken out. When the external power supply is disconnected, it will automatically switch over to batteries output without interrupting the system operation
  • Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C
  • When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

Specifications

CM4 Socket Suitable for all variants of Compute Module 4
Batteries Parallel 3x 18650 Li-ion battery (Batteries NOT included)
Networking Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
USB USB 2.0 Type A × 4
Onboard Connectors Raspberry Pi 40PIN GPIO header
M.2 M KEY slot, for connecting NVME SSD, or communication module with PCIE M.2 M KEY interface
Display DSI port × 1 (22pin 0.5mm FPC connector)
Camera CSI-2 port × 2 (22pin 0.5mm FPC connector)
Video Output HDMI × 2, supports 4K 30fps output
RTC Real-time clock with battery socket and ability to wake Compute Module 4
Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan allows speed adjustment and measurement, 5V / 12V
Indicator M.2 status LED
CM4 status LED
DC Barrel Jack Input 7-36V (12V 2A recommended)
Dimensions 175.0 × 108.0mm
