Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

SKU: WS-22360 Brand: Waveshare
Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4...
$49.40 AUD, inc GST
$44.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

  • 10-25 $43.11 (exc GST)
  • 25+ $41.76 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

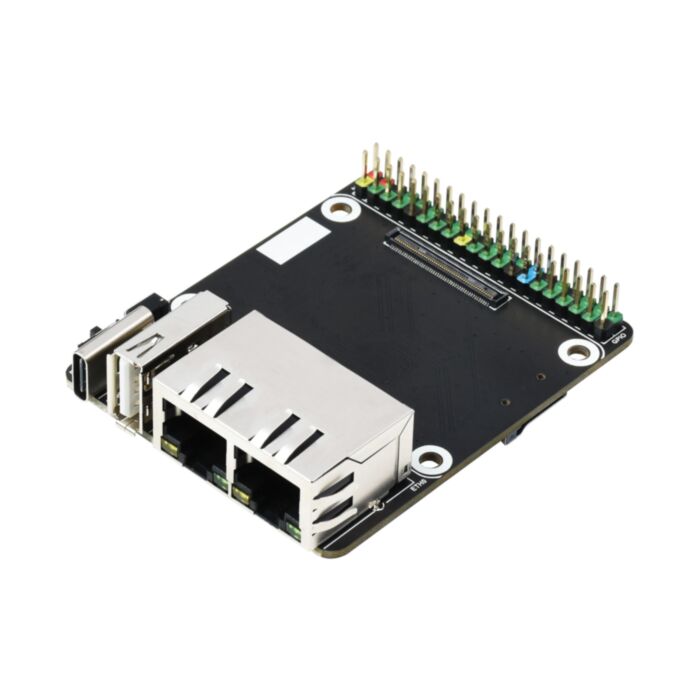

Mini Dual Gigabit Ethernet Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4 Dual Gigabit Ethernet Base Board, suitable for integrating the Raspberry Pi CM4 into end products.

Specifications

CM4 socket Suitable for all variants of Compute Module 4
Networking Dual Gigabit Ethernet RJ45 connector
USB USB 2.0 Port
PIN HEADER Raspberry Pi 40PIN GPIO header
Storage TF card socket for Compute Module 4 Lite (without eMMC) variants
Fan header 4-wire SH1.0 port, allows speed adjustment and measurement, 5V
Power input 5V, Type-C interface
Dimensions 55.0 × 68.0mm

Standard CM4 socket and 40PIN GPIO header suitable for Compute Module 4 Lite/eMMC series module

Note: CM4 is NOT included.



Rich Interfaces

Whats On the Board?

  1. 40PIN GPIO header
    for connecting sorts of HAT
  2. CM4 Socket
    suitable for all variants of Compute Module 4
  3. RJ45 Dual Gigabit Ethernet Port
    Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
    ETHERNET 0: CM4 original network port
    ETHERNET 1: PCIe extended network port
  4. USB 2.0 Type A port
    for connecting sorts of USB devices
  5. FAN header
    for connecting cooling fan, allows speed adjustment and measurement
  6. Reset button
  7. Boot switch
    ON: CM4 would be booted from USB-C interface
    OFF: CM4 would be booted from eMMC or TF card
  8. Type-C port
    5V/2.5A power supply, or used for eMMC programming
  9. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  10. RTL8111H
    Gigabit NIC chip
  11. Indicator
    PWR: indicating the power supply status of Raspberry Pi
    SYS: indicating the working status of Raspberry Pi
  12. SYSTEM switch
    EEPROM_WP: Prevent EEPROM from being overwritten
    WiFi_DIS: WiFi disabled, only for CM4 version with wireless
    BT_DIS: Bluetooth disabled, only for CM4 version with wireless



Dimensions





Documents

Shipping List

  • 1 x CM4-DUAL-ETH-MINI
