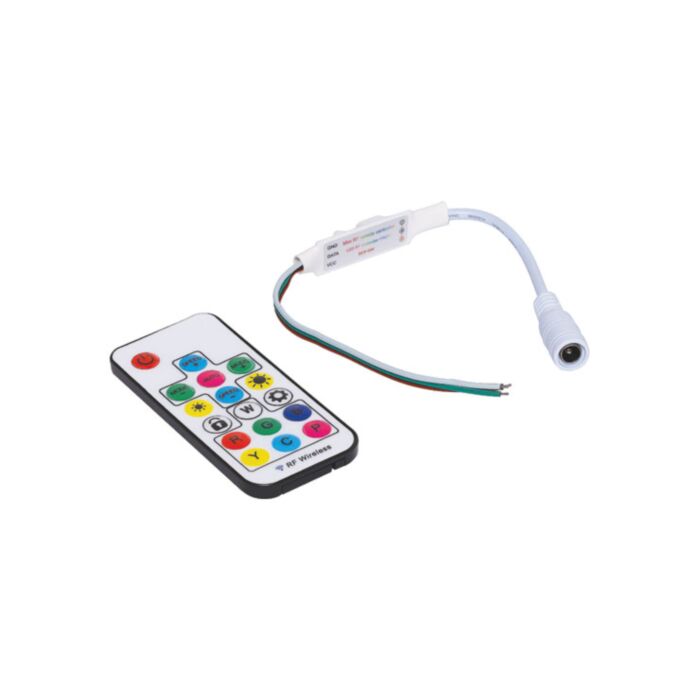

Unit Controller And Infra Red Remote for LEDs

SKU: CE09220 Brand: Core Electronics

Designed to work in conjunction with WS2811 / WS2812 strip lighting

$28.30 AUD, inc GST
$25.73 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 27 and Jul 01

Quantity Discounts:

  • 10-25 $24.95 (exc GST)
  • 25+ $24.44 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Remote control offering selectable colours, adjustable brightness, speed of colour change and 4 effects (flash , strobe, fade and smooth transition.) Designed to work in conjunction with WS28x strip lighting  like Neopixels, WS2812, WS2811 etc. Features the super common 2.1mm DC jack power input.

Remote uses CR2025 battery. KEEP OUT OF REACH OF CHILDREN



Operation Note: If remote is displaying incorrect colour LED's try the following process to reset it.

Once connected turn off (remove power) via controller - then press reset on remote. Lights should turn on white. Then press the speed button until all colours have been cycled through, once then start cycling through again. Stop on the first green. This indicates the correct mode, and all remote colours should change to the correct corresponding colour on the LED strip. Then press ON. If the colours are still not synced, repeat this process to load the correct code set. The unit will hold this "correct mode" even if power is removed. However if the reset button on remote is pushed then this procedure will need to be carried out again.

Specifications

    • Working Temperature: -20 to 60°C
    • Supply Voltage: 5-24V DC
    • Working Current: <60mA
    • Effects: 358 different ones
    • Max Number of Control Points: 2048 pixels

Remote Control:

    • Power Source: 1 x CR2025 lithium coin cell battery
    • RF Signal: Infra-Red
    • Weight: 25g
    • Dimensions: 90L x 45W x 9H mm

*Specifications are subject to change without notice.
