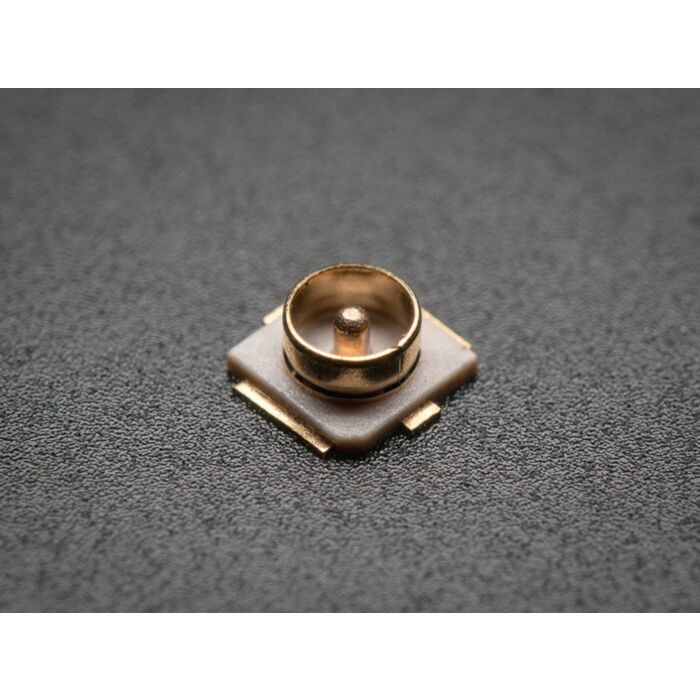

uFL SMT Antenna Connector

SKU: ADA1661

$1.50 AUD, inc GST
$1.36 AUD, exc GST

More Views

uFL SMT Antenna Connector
1.5 AUD

SKU: ADA1661

$1.50 AUD, inc GST
$1.36 AUD, exc GST
In stock, ships today if ordered before 2PM
Delivered by Mon, 23rd of Oct

uFL connectors are very small surface-mount parts used when an external RF antena is desired but a big bulky SMA connector takes up too much space. Adafruit use this part on Adafruit's GPS and WiFi boards, they're great! Chances are your antenna doesn't use uFL as the main connector, in which case you should check out Adafruit's uFL to SMA and uFL to RP-SMA adapter cables. These are also panel-mountable for a nice look. These are surface-mount but they're not too tough to solder, just watch out that the part is symmetric but only one of the end pads connects to the antenna pin!

This component is in Adafruit's EAGLE CAD library, called ANTENNA_UFL

uFL SMT Antenna Connector (30:00)
