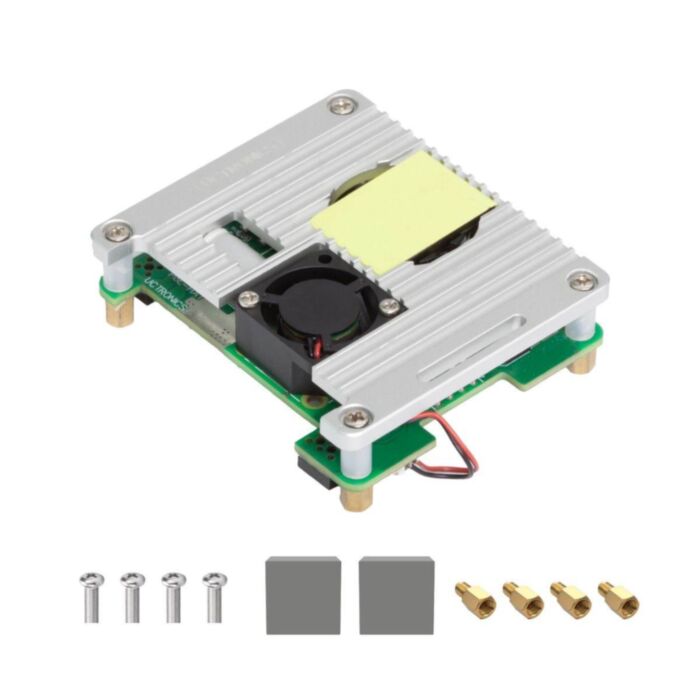

UCTRONICS PoE+ HAT for Raspberry Pi 5 (5V 4.5A)

SKU: AC-U627802 Brand: UCTRONICS

UCTRONICS PoE+ HAT for Raspberry Pi 5, Power over Ethernet with Active Cooling Fan, Aluminum Heatsink, Supports IEEE 802.3af/at Network Standard, 5V 4.5A...

$51.50 AUD, inc GST

$46.82 AUD, exc GST

Quantity Discounts:

6-12 $44.95 (exc GST)
12+ $43.55 (exc GST)

Out of Stock

This PoE HAT is a versatile and efficient solution designed for Raspberry Pi 5, 4B, and 3B+. Occupying only 6 GPIO pins, it leaves the majority of your GPIO ports free for other applications. Its compatibility with multiple Raspberry Pi models ensures you won't need different PoE configurations for each board.

The Raspberry Pi 5 PoE HAT supports IEEE 802.3af/at protocols, providing seamless power and data transmission via a single network cable. With a maximum output of 5V 4.5A and an input range of 45-57V, this Class 4 PoE device delivers reliable and robust power performance, making it ideal for Raspberry Pi 5 peripherals.

Designed for efficient heat management, the HAT features an active cooling fan, an aluminum heat sink, and thermally conductive silicone sheets. These components are pre-installed, offering a hassle-free setup and true out-of-the-box functionality. Enjoy optimal performance and convenience with UCTRONICS's new Raspberry Pi 5 PoE+ HAT.

Features

Compatible with Raspberry Pi 5 and Pi 4B, occupying only 6 pins of the 40-pin GPIO.
Raspberry Pi 5 PoE+ HAT: IEEE 802.3af/at compliant, max output of 5V 4.5A, input 45-57V, Class 4 PoE device.
Fully isolated switch mode power supply (SMPS) for stable power delivery.
On-board active cooling fan and aluminum heatsink for efficient cooling.
Pre-assembled, ready to use, easy setup with a network cable for power and data.
Supports mounting on most of UCTRONICS's rackmounts, e.g., RM0013/RM0004.

Specifications

PoE Power Input: 5V 4.5A Max
PoE Power output: 45-57V DC, Class 4 PoE device
Voltage: 1KV isolated
Dimensions: 65×58mm
Network Standard: IEEE 802.3af/at PoE

Package Includes

1 x PoE hat
1 x Screw Pack

Notes

Please ensure that the PSE device port provides at least 25W of power output.
The PSE device must be an IEEE 802.3af/at compliant PoE router or switch.
The Raspberry Pi and switch are not included in the package.
