UART Non-contact Optical Turbidity Sensor for Arduino

SKU: SEN0554 Brand: DFRobot

This non-contact turbidity sensor, which is based on the optics principle, can detect the level of turbidity in transparent cylinder containers....

$16.95 AUD, inc GST

$15.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 2nd of May

Quantity Discounts:

10-25 $14.95 (exc GST)
25+ $14.64 (exc GST)

This non-contact turbidity sensor detects water quality by measuring the level of turbidity. Based on the optics principle, it is capable of detecting the light transmittance and scattering rate of the liquid in transparent cylinder containers with a diameter of 40–50mm, which will then be output as an analog value within a certain range that reflects the level of liquid turbidity.

The turbidity sensor comes with two infrared probes, which should be oppositely installed on a container. And it detects when the liquid level inside is higher than the two probes. The sensor can measure without coming into contact with liquid, making it less susceptible to corrosion from water or chemicals.

Installation

Features

No mechanically moving parts, high reliability
Small size & low cost

Applications

Water quality monitoring system

Specification

Supply Voltage: 5V
Communication Mode: UART-TTL
Applicable Cylinder Container Diameter: 40 to 50mm
Baud Rate: 9600
Operating Current: less than 10mA
Response Time: less than 1s
Operating Temperature: 5 to 60°C
Storage Temperature: 0 to 65°C
Service Life: 50000h

Documents

Product wiki

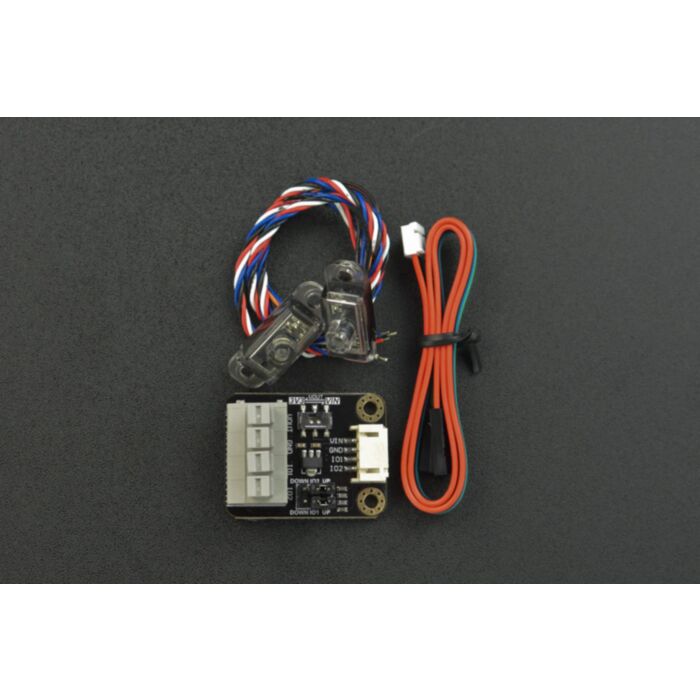

Parts List

Turbidity Sensor × 1
Gravity: 4Pin Sensor Adapter × 1
