Gravity: Analog Turbidity Sensor

Rating:

80% of 100

2 Reviews

SKU: SEN0189 Brand: DFRobot

$16.20 AUD, inc GST

$14.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

10-25 $14.14 (exc GST)
25+ $13.70 (exc GST)

The turbidity sensor detects water quality by measuring level of turbidity. It is able to detect suspended particles in water by measuring the light transmittance and scattering rate which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases.

This sensor has both analog and digital signal output modes. You can select the mode according to the MCU as threshold is adjustable in digital signal mode.

Turbidity sensors can be used in measurement of water quality in rivers and streams, wastewater and effluent measurements, sediment transport research and laboratory measurements.

Please note the top of probe is not waterproof!

Specification

Operating Voltage: 5V DC
Operating Current: 40mA (MAX)
Response Time: <500ms
Insulation Resistance: 100M (Min)
Output Method:Analog
Analog output: 0-4.5V
Digital Output: High/Low level signal (you can adjust the threshold value by adjusting the potentiometer)
Operating Temperature: -30°C ~ 80°C
Storage Temperature: -10°C ~ 80°C
Weight: 30g
Adapter Dimensions: 38mm*28mm*10mm

Documents

Product wiki
Documents (Schematic included)

Parts List

Turbidity sensor adapter x1

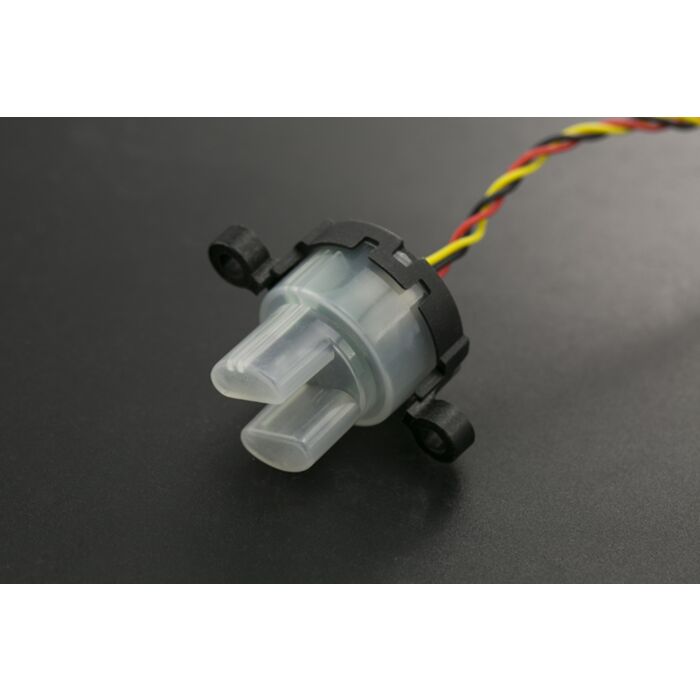

Turbidity sensor probe x1
Turbidity sensor cable x1
Gravity analog sensor cable x1

This product is listed in:

Sensors>Liquid & Flow
