Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm)

SKU: FIT0489-C

$32.80 AUD, inc GST
$29.82 AUD, exc GST

More Views

Turbo Metal Gear Worm Motor (12V 160RPM 2.2kg.cm)
32.8 AUD

SKU: FIT0489-C

$32.80 AUD, inc GST
$29.82 AUD, exc GST
In stock, with a short lead time. 29 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 25th of Oct with Express Post within Australia.

Introduction

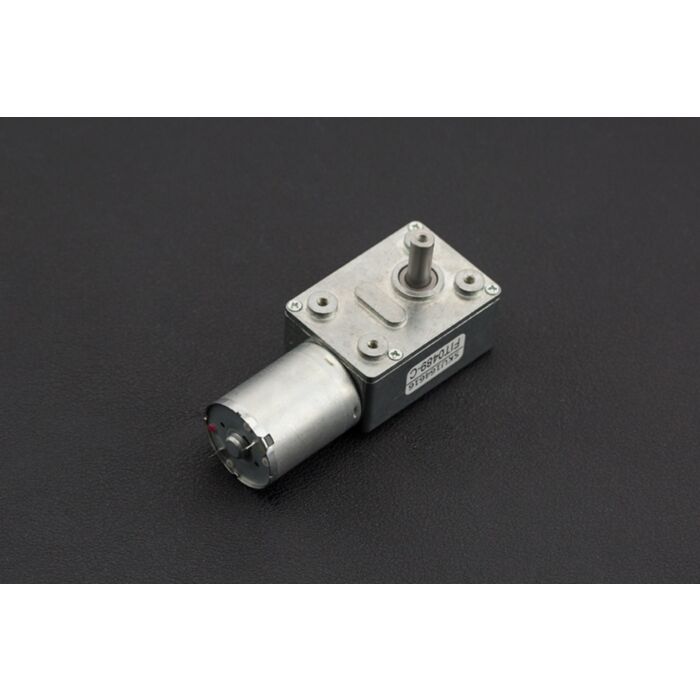

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
(From wikipedia)
This part uses a two wire connection and supports direction control as well as PWM speed control. Rated voltage is 12v and will achieve 160RPM, with a torque of 2.2kg/cm.

Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

Specification

  • Operating Voltage: 6 - 15 V
  • Rated Voltage: 12V
  • No-load Speed: 160 RPM
  • No-load Current: 35 mA
  • Rated Torque: 128 RPM
  • Rated Current: 180 mA
  • Rated Torque: 0.55 kg.cm
  • Rated Power: 1.1 W
  • Stall Torque: 2.2 kg/cm
  • Stall Current: 1 A
  • Reduction Ratio: 1:37.3
  • Weight: 165 g

Parts List

  • Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
Documentation and Resources:
