Triple Axis Accelerometer Breakout - MMA7361

SKU: SEN-09652 Brand: Sparkfun

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

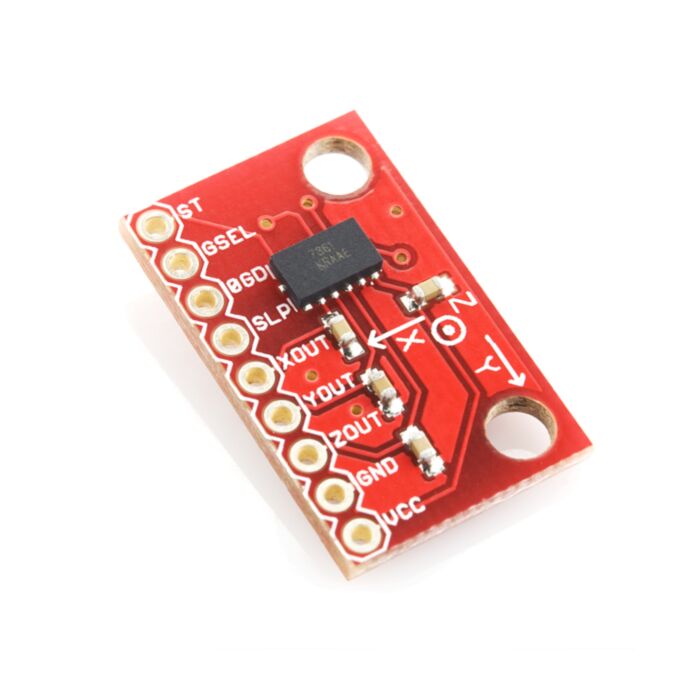

This is a breakout board for Freescale’s MMA7361L three-axis analog MEMS accelerometer. The sensor requires a very low amount of power and has a g-select input which switches the accelerometer between ±1.5g and ±6g measurement ranges. Other features include a sleep mode, signal conditioning, a 1-pole low pass filter, temperature compensation, self test, and 0g-detect which detects linear freefall. Zero-g offset and sensitivity are factory set and require no external devices.

This breadboard friendly board breaks out every pin of the MMA7361L to a 9-pin, 0.1" pitch header. The sensor works on power between 2.2 and 3.6VDC (3.3V optimal), and typically consumes just 400µA of current. All three axes have their own analog output.

Not sure which accelerometer is right for you? Our Accelerometer and Gyro Buying Guide might help!

Features:

Two selectable measuring ranges (±1.5g, ±6g)
Breadboard friendly - 0.1" pitch header
Low current consumption: 400 µA
Sleep mode: 3 µA
Low voltage operation: 2.2 V - 3.6 V
High sensitivity (800 mV/g at 1.5g)
Fast turn on time (0.5 ms enable response time)
Self test for freefall detect diagnosis
0g-Detect for freefall protection
Signal conditioning with low pass filter
Robust design, high shocks survivability

Dimensions: 0.90 x 0.50"
