Trinket-Powered NeoPixel Goggle Kit Pack

Rating:

100% of 100

SKU: ADA2221 Brand: Adafruit

As of October 12th, 2015 this product now ships with an Adafruit Trinket with a micro-USB plug. One of the most popular Trinket projects now has its own kit pack! .. read more

$114.95 AUD, inc GST

$104.50 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 08 and Apr 11

Quantity Discounts:

5+ $100.32 (exc GST)
10+ $97.18 (exc GST)

As of October 12th, 2015 this product now ships with an Adafruit Trinket with a micro-USB plug.

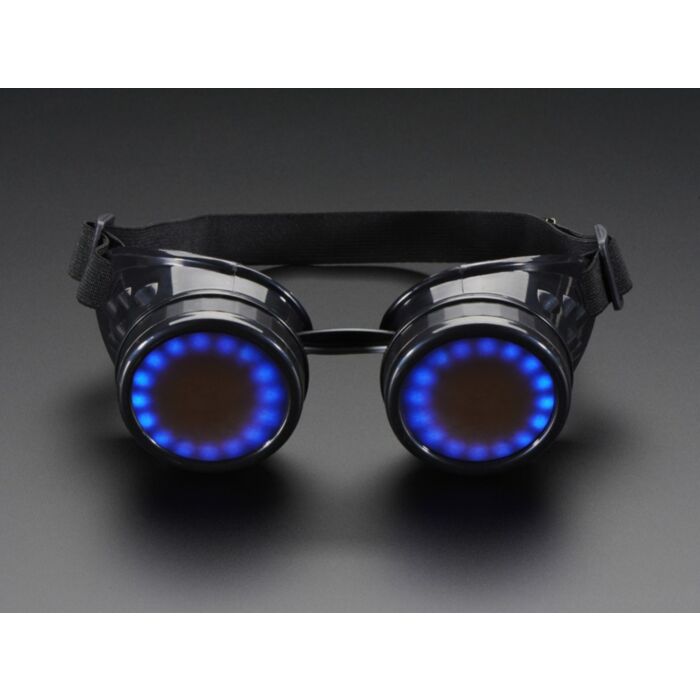

One of the most popular Trinket projects now has its own kit pack! Make your very own programmable NeoPixel goggles with 2 x 16 LED rings and an Adafruit Trinket. It even comes with a rechargeable LiPoly battery and charger. It's a great easy build and when you're done you'll have the coolest accessory.

Follow along with Adafruit's popular Kaleidoscope Eyes tutorial. The pack contains almost everything you need to put a pair of NeoPixel Rings in Adafruit's costume goggles and power them with an Adafruit Trinket. The LED rings fit perfectly inside 50mm round goggles and Adafruit include a 3.7v 150mAh battery and and Micro Lipo charger so you can run the battery and charge it all while contained in the goggles themselves.

These are fairly easy to put together and should take around an hour to make. You'll need some basic soldering and hand tools to install the JST connector on the bottom side of the Trinket and connect your NeoPixel rings. We don't include a soldering iron or solder but sell them in the Adafruit store and you can find epoxy or hot glue at most hardware/craft stores. The soldering is easy and is possible to do by beginners, its a 1-2 hour project (30 minutes if you are a kit-making expert!) Check the tutorial page to see what you'll need to complete the project!

You'll also need a classic USB Micro B cable to program the Trinket, Adafruit don't include it as people tend to have too many USB cables in their desk drawer, but if you need one, you can get it from Adafruit here.

Please note! They look great, but Adafruit don't recommend putting the goggles over your eyes when they're all lit up since the lights can be bright and the goggle lenses can be hard to see out of. However, the goggles work great for costumes/accessories when they're put on top of your forehead!

Technical Details

WS2812 Datasheet
SK6812 Datasheet
May ship with either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol

This pack includes:

6" inches of Rainbow Ribbon Cable
1x Adafruit Trinket - Mini Microcontroller - 5V Logic
1x Lithium Ion Polymer Battery - 3.7v 150mAh
1x Adafruit Micro Lipo - USB LiIon/LiPoly charger - v1
1x JST-PH 2-Pin SMT Right Angle Connector
2x NeoPixel Ring - 16 x 5050 RGB LED with Integrated Drivers
1x Costume Goggles
