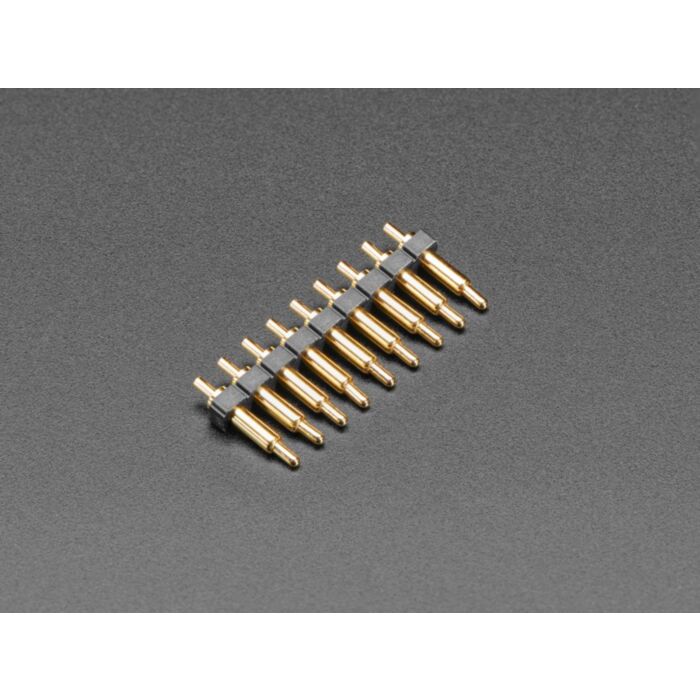

Through Hole Inline Pogo Pin Header - 9 Pins with 0.1" Spacing

Rating:
100% of 100
SKU: ADA5381
Pogo pins are little spring-loaded contacts, very handy for making jigs, or making momentary (but electrically solid) contacts. We use them by the dozen...
$3.85 AUD, inc GST
$3.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 10-25 $3.36 (exc GST)
  • 25+ $3.25 (exc GST)
- +

12 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Pogo pins are little spring-loaded contacts, very handy for making jigs, or making momentary (but electrically solid) contacts. Adafruit use them by the dozen for making programming and testing jigs but they're handy also if say you want to JTAG program a board that you can't solder headers to.

Most pogo's come as individual pins, that must be soldered into a jig to make contact. But maybe your board has 0.1" spacing already and you don't want to make a custom PCB? In that case you can use this Pogo Pin "Header" strip, with 9 pogos in a row with 2.54mm / 0.1" spacing. There's thin stems that could be soldered into a proto or perf board. The tops are rounded and individually springy

You could snap or cut these to make smaller bits but you may lose a pogo pin in between so keep that in mind.

Comes with a single in-line 9-pin pogo header.

Check out Adafruit's tutorial on how Adafruit make pogo-pin jigs!

Technical Details

  • Dimensions:
    • Total Length: 8mm
    • Collar Length: 6mm
    • Pin Diameter: 0.9mm
    • Collar Diameter: 1.5mm
    • Pin Pitch: 2.54mm
    • Strip Width: 2.5mm
    • Strip Length: 22.86mm
    • PCB Thru-hole Diameter: 0.8mm
  • Diagram
