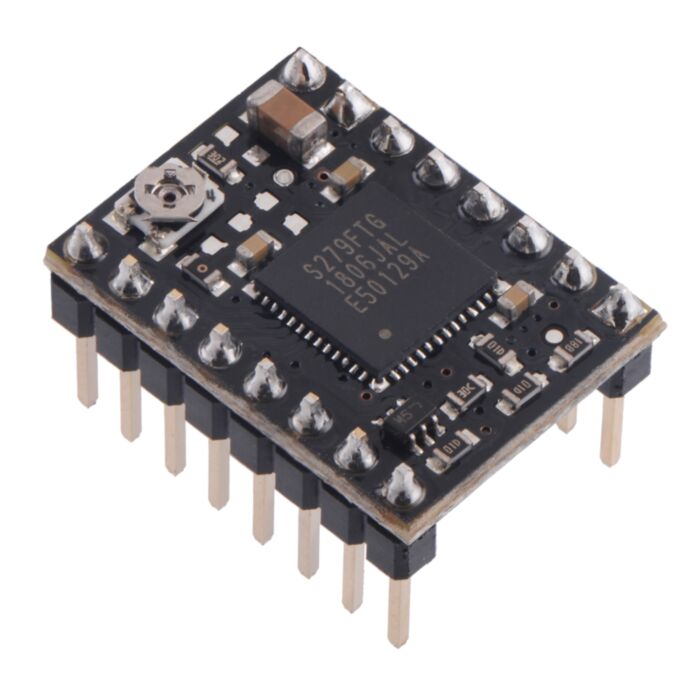

This version of Pololu's TB67S279FTG Stepper Motor Driver Compact Carrier ships with male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the TB67S279FTG Stepper Motor Driver Compact Carrier product page for more information about the driver.
Dimensions
Size: | 0.6" × 0.8" |
---|---|
Weight: | 2.6 g |
General specifications
Motor driver: | TB67S279FTG |
---|---|
Minimum operating voltage: | 10 V |
Maximum operating voltage: | 47 V |
Continuous current per phase: | 1.1 A |
Maximum current per phase: | 2 A |
Minimum logic voltage: | 2 V |
Maximum logic voltage: | 5.5 V |
Microstep resolutions: | full, non-circular 1/2, 1/2, 1/4, 1/8, 1/16, 1/32 |
Current limit control: | potentiometer |
Reverse voltage protection?: | N |
Header pins soldered?: | Y |
Identifying markings
PCB dev codes: | md34a |
---|---|
Other PCB markings: | 0J11687 |
File downloads
TB67S279FTG datasheet (536k pdf)
TB67S249FTG datasheet (533k pdf)
Schematic diagram of the TB67S279FTG/TB67S249FTG Stepper Motor Driver Compact Carrier (141k pdf)
Dimension diagram of the TB67S2x9FTG Stepper Motor Driver Compact Carrier (179k pdf)
3D model of the TB67S2x9FTG Stepper Motor Driver Compact Carrier (6MB step)
Drill guide for the TB67S2x9FTG Stepper Motor Driver Compact Carrier (41k dxf)
This DXF drawing shows the locations of all of the board’s holes.
Recommended links
Video: setting the current limit on Pololu stepper motor driver carriers
Toshiba’s product page for the TB67S279FTG stepping motor driver IC, with links to its most up-to-date datasheet in several languages, application notes, and other resources.
Toshiba’s product page for the TB67S249FTG stepping motor driver IC, with links to its most up-to-date datasheet in several languages, application notes, and other resources.
