Tactile Switch Assortment - 25 Different Buttons - 10 pcs each - Through Hole and Surface Mount

SKU: ADA5493 Brand: Adafruit

When designing your next PCB, if you're not sure what sort of tactile switches you can fit, or how they would look, this Tactile Switch Assortment...

$45.15 AUD, inc GST

$41.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 20th of Nov

Quantity Discounts:

10-25 $39.82 (exc GST)
25+ $38.99 (exc GST)

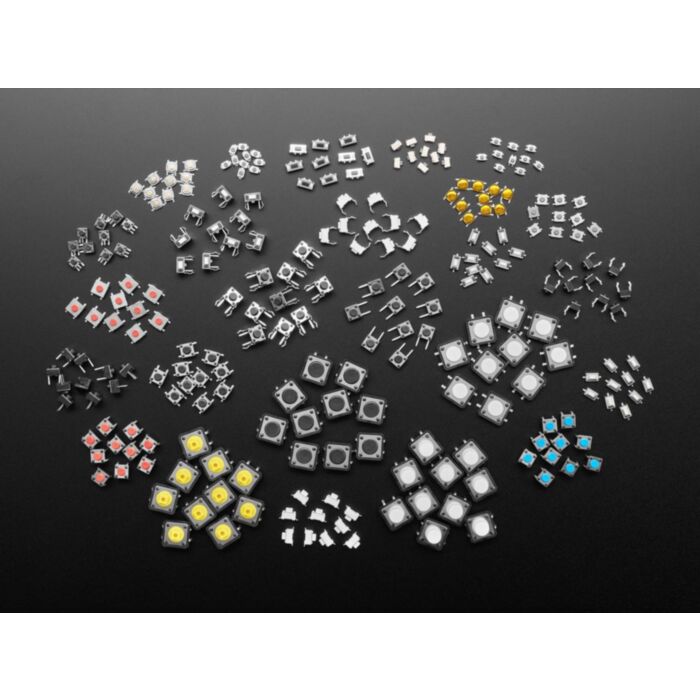

When designing your next PCB, if you're not sure what sort of tactile switches you can fit, or how they would look, this Tactile Switch Assortment with 25 Different Buttons (10 pcs each type) is incredibly handy! You get just enough that you can prototype and even lose a couple pieces, but not so many that you're drowning in buttons.

Also great for repair, if you're not positive of what tactile switch is in the appliance or device you're using.

Each switch is momentary-type, where the contacts on either side close when the button is pressed. Some have 4 legs since there's duplicate connections - that doesn't mean there's two separate switches. Use a multimeter on continuity mode if you're not sure of how the tact switch is set up.

These work best in soldered into a PCB but many of the through-hole type can be used on a solderless breadboard as shown in this tutorial.

Technical Details

Datasheets

1. 6mm x 6mm x 5mm

10. 3mm x 6mm x 5mm

11. 3mm x 6mm x 3.5mm

12. 3mm x 6mm x 2.5mm

13. 4.5mm x 4.5mm x 1.5mm

14. 4.5mm x 4.5mm x 3.8mm

15. 4.5mm x 4.5mm x 5mm

16. 4mm x 4mm x 1.5mm

17. 4mm x 4mm x 0.8mm

18. 6mm x 6mm x 3.1mm

22. 3mm x 3.5mm x 1.9mm

23. 12mm x 12mm x 5mm

24. 12mm x 12mm x 7.3mm

25. 12mm x 12mm x 5mm

3. 6mm x 6mm x 5mm

4. 12mm x 12mm x 10mm
