433MHz wireless RF transmitter and receiver kit

Rating:
100% of 100
SKU: SS114992733 Brand: Seeed Studio
This is a complete wireless transmitting and receiving the kit, which can be applied to simple data wireless transmission, wireless remote control, anti-theft alarm system, etc. The kit is composed of ASK transmitter and receiver modules with superior performance and low cost. The carrier frequency can be 315MHz or 433MHz.
$9.25 AUD, inc GST
$8.41 AUD, exc GST

Quantity Discounts:

  • 10-25 $8.07 (exc GST)
  • 25+ $7.82 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a complete wireless transmitting and receiving kit, which can be applied to simple data wireless transmission, wireless remote control, anti-theft alarm system, etc. The kit has a simple structure and flexible application, and can be directly applied to the design and experimental development of various products.

The popular link is like this: MCU -> Encoder -> Transmitter ------ Receiver -> Decoder -> MCU. You can use this kit to build a system with other main control equipment, such as Arduino, Seeeduino XIAO, to implement applications such as wireless security alarms, remote control tools, and so on.

The following is the introduction of the transmitter and receiver respectively.

OOK (on-off keying) is binary switching keying. The modulation principle is to control the passage of the carrier by controlling the opening and closing of the switching device through the binary sequence, so as to load the binary signal onto the carrier. It is a low-cost and most easily implemented modulation method, which is widely used in various occasions.

Transmitter

In the wireless transceiver kit, the wireless transmitter module model is APF03, and its working voltage range is 3-12v. It adopts OOK modulation mode, which has the advantages of fast modulation rate and long transmission rate.

Receiver

In addition, the model of the decoding wireless receiving module is RXB28, and the working frequency between the transmitter and reciever is 315MHz or 433.92MHz, we are unable to guarantee which frequency is shipped. The recommended power supply input is 5V - the current can be as low as 4.2mA, and the power consumption is very low.

Features

  • Low power consumption: 3.3V about 3.8mA / 5V about 4.2mA(315MHz)
  • High receiving sensitivity: -109dBm@10kbps
  • Wide temperature range: -40°C ~ 85°C
  • Flexible application,breadboard and PCB friendly
  • Strong radiation suppression ability:no mutual interference, no influence on receiving distance.

Applications

  • Car remote control door switch (RKE)
  • Remote access control
  • Wireless security alarm
  • Remote control curtain machine
  • Wireless industrial controller
  • Wireless data transmission
  • Wireless remote control robot

Specifications



Parameter

Description

Working voltage

Transmitter(3-12V),Receiver(3.3-5V)

Working current

Transmitter :max=35mA(12V), min=2mA(3V)

Receiver :max=4.5mA(5.5V), min=3.8mA(3.3V)

Principle of work

Superhet(VCO, PLL)

Modulation

OOK/ASK

Working band

315MHz OR 433.92MHz

Sensitivity

-109dBm (50O)

Modulation rate

<10Kbps

Decoding form

IC decoding

Temperature range

-40°C ~ 85°C

Product drawings and pin information

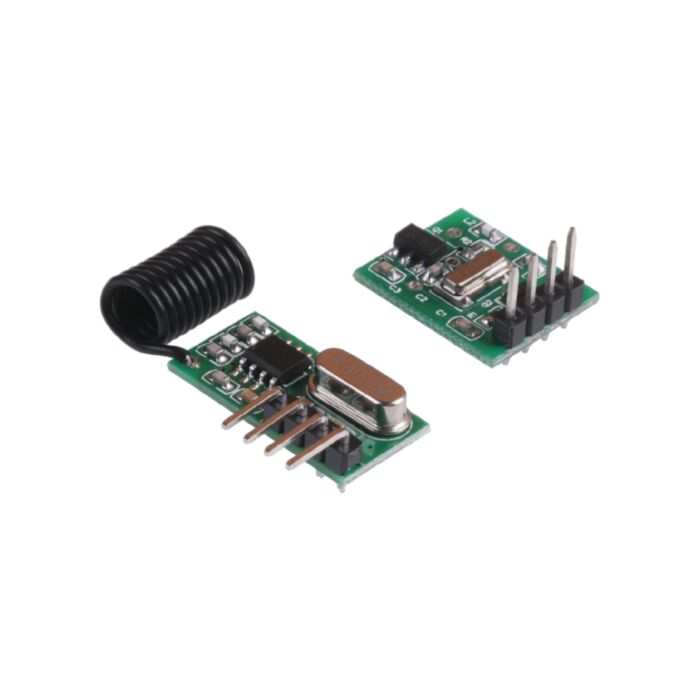

Transmitter

The pins are arranged from left to right as follows:

  • Pin:Name:Function declaration
  • 1:VCC:Positive pole
  • 2:GND:Negative pole
  • 3:DATA:Signal pin
  • 4:ANT:Antenna pin

The transmitter module has a small volume and a standard 2.54 spacing for convenient installation.

Receiver

The pins are arranged from left to right as follows:

  • Pin:Name:Function declaration
  • 1:ANT:Antenna pin
  • 2:VCC:Positive pole
  • 3:DATA:Signal output
  • 4:DATA:Signal output
  • 5:GND:Negative pole

Technical Details

  • Weight:  5g
  • Battery: Excluded

Part List

  • Transmitter module x1
  • Receiver module x1

This product is listed in:

Wireless>General RF>Transceivers
