Stepper Motor with 28cm Lead Screw: Bipolar, 200 Steps/Rev, 42×38mm, 2.8V, 1.7 A/Phase

SKU: POLOLU-2268 Brand: Pololu
This NEMA 17-size hybrid bipolar stepping motor has an integrated 28 cm (11″) threaded rod as its output shaft, turning it into a linear actuator capable of precision open-loop positioning. The included traveling nut has four mounting holes and moves 40 µm (1.6 mil) per full step; finer resolution can be achieved with microstepping. The stepper motor has a 1.8° step angle (200 steps/revolution) and each phase draws 1.7 A at 2.8 V, allowing for a holding torque of 3.7 kg-cm (51 oz-in).
$114.95 AUD, inc GST
$104.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 4th of Mar

Quantity Discounts:

  • 5-10 $101.36 (exc GST)
  • 10+ $99.27 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details for item #2268

The lead screw built into this stepper motor extends 28 cm (11") from the face of the stepper motor and weighs 385 g (13.5 oz). Pololu also carry versions of this stepper motor with an 18 cm and 38 cm lead screw, and Pololu also have the stepper motor available without a lead screw.

Stepper motor with 28cm lead screw: bipolar, 200 steps/rev, 42×38mm, 2.8V, 1.7 A/phase.

When the nut is prevented from rotating, it travels up or down the rod as the motor rotates.

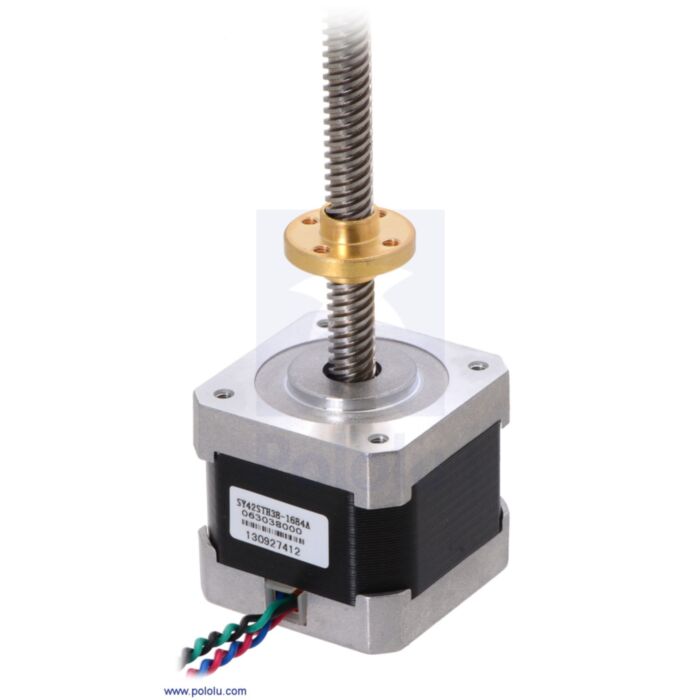

This linear positioning drive consists of Pololu's 42×38 mm NEMA17 stepper motor with a built-in lead screw in place of the normal output shaft, which makes it easy to move an object or platform in a linear motion with the precision of a stepper motor. Motors like this are especially popular for use in home-built 3D printers (e.g. RepRap) and CNC machines. The stainless steel threaded rod extends from the face of the stepper motor, and since it is integrated into the motor itself, you do not have to deal with bulky shaft couplers or loose set screws. This stepper motor comes in three versions with different length lead screws built in: 18 cm, 28 cm, and 38 cm.

NEMA 17-size stepper motors with 18, 28, and 38cm lead screws.

The included copper alloy traveling nut (also known as a carriage nut) features a mounting flange with four holes threaded for M3 screws. The nut moves 8.0 mm per full revolution of the lead screw, which allows for a linear resolution of 0.040 mm per full step of the stepper motor. Even smaller step sizes can be achieved through microstepping, which is a feature of many bipolar stepper motor drivers. Pololu recommend the MP6500 stepper motor driver carrier or AMIS-30543 stepper motor driver carrier for use with this stepper motor, the latter of which allows for a linear resolution of 1.25 µm per 1/32 microstep. However, please note that the nut is not spring loaded, so changes in direction will result in loss of positioning precision due to backlash. Extra traveling nuts are also available for purchase separately.

The maximum achievable linear speed depends a lot on the details of the system, including the load and motor supply voltage. Under ideal conditions (e.g. with gradual ramping up of the step rate, a high supply voltage, and no load), Pololu were able to achieve speeds close to 30 cm/s (12 in/s) with the 28 cm lead screw version.

The stepper motor has a 1.8° step angle (200 steps/revolution) and each phase draws 1.7 A at 2.8 V, allowing for a holding torque of 3.7 kg-cm (51 oz-in). The motor has four color-coded wires terminated with a JST XHP-4 connector with 0.1" spacing: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but Pololu recommend using a bipolar stepper motor driver or one of Pololu's Tic Stepper Motor Controllers. In particular, the Tics make control easy because they support six different interfaces (USB, TTL serial, I²C, RC, analog voltages, and quadrature encoder) and are configurable over USB with Pololu's free configuration utility.

The JST XHP-4 connector that terminates the leads of the NEMA 17 stepper motor with 28cm lead screw.

Bipolar stepper motor wiring diagram.

Pololu's NEMA 17 aluminum bracket offers a variety of options for mounting this stepper motor in your project:

NEMA 17 stepper motor with lead screw mounted with a stamped aluminum L-bracket.

Specifications

  • Size: 42.3 mm square × 38 mm, not including the shaft (NEMA 17)
  • Leadscrew: Tr 8 × 8(P2)
  • Steps per revolution: 200
  • Linear step size: 40 µm (1.6 mil) per full step
  • Current rating: 1.68 A per coil
  • Voltage rating: 2.8 V
  • Resistance: 1.65 O per coil
  • Holding torque: 3.7 kg-cm (51 oz-in)
  • Inductance: 3.2 mH per coil
  • Lead length: 16 cm (6.5")
  • Output shaft supported by two ball bearings

More specifications are available in the datasheet (63k pdf). Note that while the datasheet is for the stepper motor with 28 cm lead screw, the only difference between the three versions is the length of the lead screw.

Dimensions

The following diagram shows the stepper motor, lead screw, and traveling nut dimensions in mm. The value of L is 182 mm for the stepper motor with 18cm lead screw, 282 mm for the stepper motor with 28cm lead screw, and 382 mm for the stepper motor with 38cm lead screw. Note that the datasheet incorrectly labels the threaded rod as “TR8×3”; it is really a Tr8×8(P2) leadscrew, which is the ISO designation for a trapezoidal metric thread with an 8 mm nominal diameter, 8 mm lead, and 2 mm pitch. (Put more simply, the rod has four independent threads spaced 2 mm apart, so the carriage nut advances 8 mm for each full revolution of the rod.)

The inside of a bipolar stepper motor (SOYO NEMA 14-size).

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives

Note: This stepper motor is SOYO part number SY42STH38-1684A.
