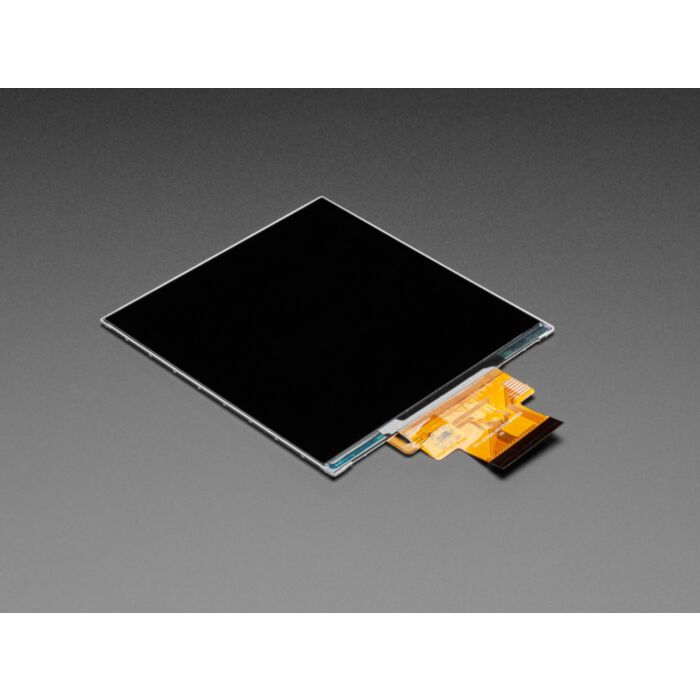

Square RGB 666 TTL TFT Display - 4" 720x720 - No Touchscreen - TL040HDS20-B1502A

SKU: ADA5795 Brand: Adafruit
This is a screen for advanced hackers who like the look of a big rectangular TFT screen with tons of pixels. The 4" display has 720x720 16-bit...
$58.55 AUD, inc GST
$53.23 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

  • 6-12 $51.10 (exc GST)
  • 12+ $49.50 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a screen for advanced hackers who like the look of a big rectangular TFT screen with tons of pixels. The 4" display has 720x720 16-bit full-color pixels and is an IPS display, so the color looks great up to 80 degrees off-axis in any direction.

This version does not have a touchscreen.

The TFT driver is ST7701S and uses both TTL RGB 'dot clock' data. Note that unlike the other funky-shaped displays, this particular model does not require SPI pre-configuration. It pops up immediately into 'RGB' mode - which makes it a great panel to start with. However, note that despite having a 40-pin connector, it does not have the same pinout as standard 'rectangular' 800x480 (4.3", 5" or 7") or 480x272 (4.3") displays. It's a new kind of beast for sure.

To make stuff light up you'll need a chip that can perform TTL RGB TFT driving, which means a powerful microcontroller such as the ESP32-S3 with octal PSRAM or a computer like a Raspberry Pi (with either direct-DPI connection or an intermediary chip like the ICN6211). Either way, it's not something you can wire up to your Feather or Arduino!

This is just the display module, no driver PCB is included!

You cannot use these with an everyday microcontroller unless it specifically has support for RGB-666 displays so please do not purchase unless you know for sure that it can plug into a driver board with the correct pinout as well. Check out the Adafruit Qualia ESP32-S3 for TTL RGB-666 Display!

Technical Details

RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant Learn
