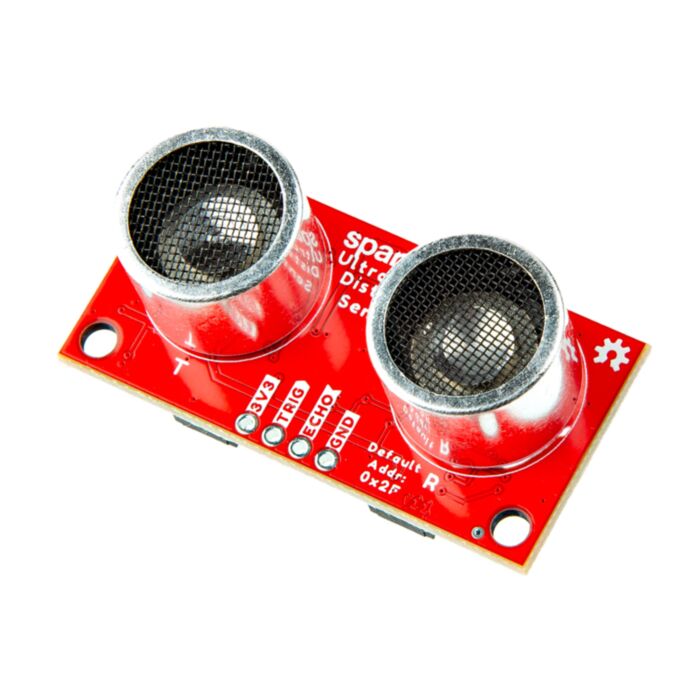

SparkFun Ultrasonic Distance Sensor - TCT40 (Qwiic)

SKU: SEN-24805 Brand: Sparkfun

The TCT40 distance sensor is great for non-contact distance readings from 2cm to 400cm. This unit adds a pair of Qwiic connectors so you can use I2C!...

$16.70 AUD, inc GST

$15.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $14.73 (exc GST)
25+ $14.42 (exc GST)

The SparkFun Qwiic Ultrasonic Distance Sensor, a user-friendly upgrade to the popular HC-SR04 sensor, offers non-contact distance measurement from 2cm to 400cm with an accuracy of 3mm. This sensor is designed to seamlessly integrate with the Qwiic ecosystem for I²C communication, making it a breeze to add to your existing projects and daisy-chain with other Qwiic components.

If you prefer to bypass the Qwiic connector and I2C, you can also access the VCC, Trigger, Echo, and Ground pins broken out on the board's edge. Please be aware that this ultrasonic sensor comes uncalibrated, and you will need to manipulate the raw output for your specific application.

With its wide range of applications, the SparkFun Qwiic Ultrasonic Distance Sensor is a versatile tool for robotics projects, obstacle avoidance systems, and any application that requires accurate distance measurement without physical contact. Its adaptability makes it a valuable addition to your toolkit.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun Qwiic Ultrasonic Distance Sensor Guide

Includes

1x Ultrasonic Distance Sensor - HC-SR04
1x Right-Angle Header - 4-pin

Features

Operating Voltage 3.3V
Detecting Angle: 80 degrees
Sensor range: 2cm to 400cm
Accuracy: 3mm
MCU on board: STM8L051F3
Default I²C Address: 0x2F
Dimensions: 1.75" x 0.85"

Documents

This product is listed in:

Sensors>Distance>Ultrasonic
